3       Waveguide to coaxial line transition

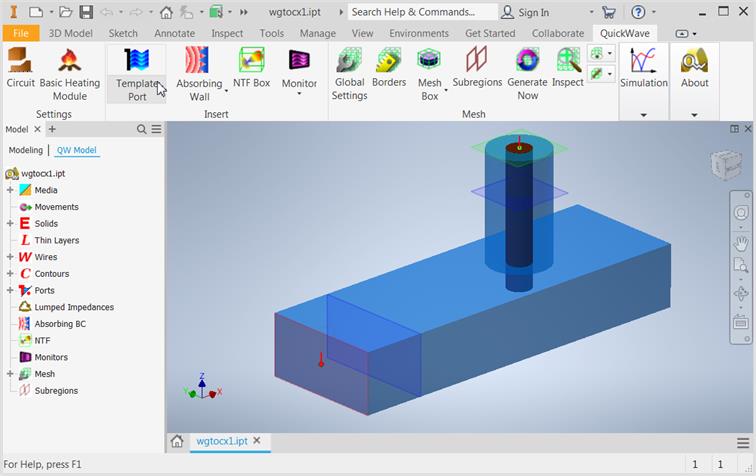

This example is available in .../QW_AddIn_3D/Standard/Various/Wgtocx/wgtocx1.ipt in the QW3D or QW-Addin examples directory and can be loaded using File®Open Autodesk Inventor command from main menu.

Let us consider waveguide to coaxial line transition, which will be used to present the project preparation process, step by step.

In general, the project creation process can be divided into several steps:

1.     Creating new project document

2.     Defining the type of the structure

3.     Drawing the structure

4.     Drawing the ports

5.     Setting up the mesh

6.     Defining post-processings for simulation

7.     Exporting the project and running the simulation

8.     Introducing symmetry plane

We will now describe each step of the project preparation.
