3.1     Creating new project document

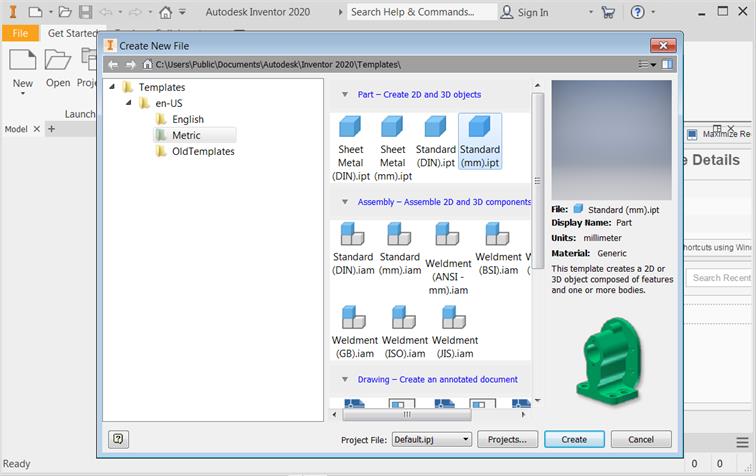

QW-Addin works with Part objects. User at the beginning has to create new (File->New) Part 3D object using e.g Standard(mm) template.

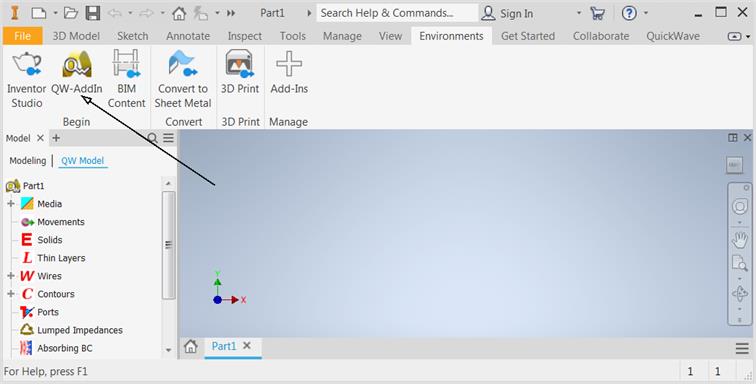

Then to activate QW-AddIn, user shall press QW-AddIn activation icon  from Environments menu. Icon should change color from grayed to yellowish  :

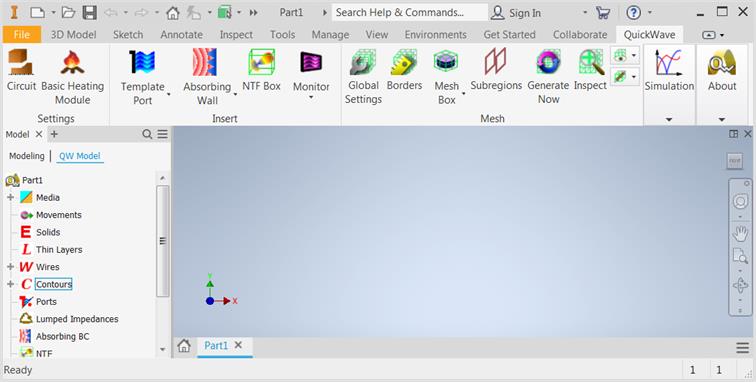

After that user shall switch to QuickWave menu:

Next step: Defining the type of the structure.
