from the Simulation group menu. In the case of our waveguide to coaxial line transition we are interested in S-parameters of the structure, thus we press [S ] – differential check box in the Postprocessings dialogue.3.6 Defining post-processings for simulation
In this step we choose the post-processings for the simulation. To choose and set up the post-processings we need to press Postprocessing from the Simulation group menu. In the case of our waveguide to coaxial line transition we are interested in S-parameters of the structure, thus we press [S ] – differential check box in the Postprocessings dialogue.

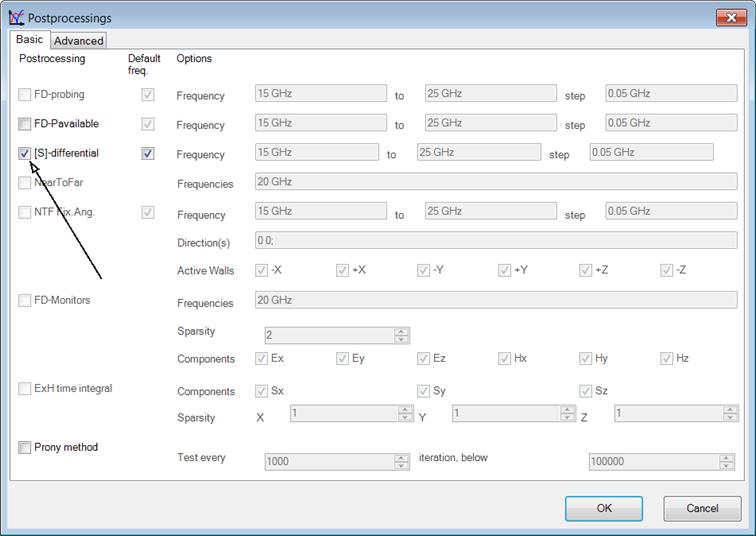

Postprocessing dialogue for waveguide to coaxial line transition project.
The frequency range for S-parameters calculations corresponds to the excitation frequency range and the step is chosen to be 0.05 GHz.
