button from the Simulation group menu. The QW-Simulator is run and the simulation starts automatically. For a detailed description of QW-Simulator functionalities please refer to QW-Simulator manual.3.7 Exporting the project and running the simulation
The project is ready and we can run the simulation. For that purpose we press Run Start button from the Simulation group menu. The QW-Simulator is run and the simulation starts automatically. For a detailed description of QW-Simulator functionalities please refer to QW-Simulator manual.

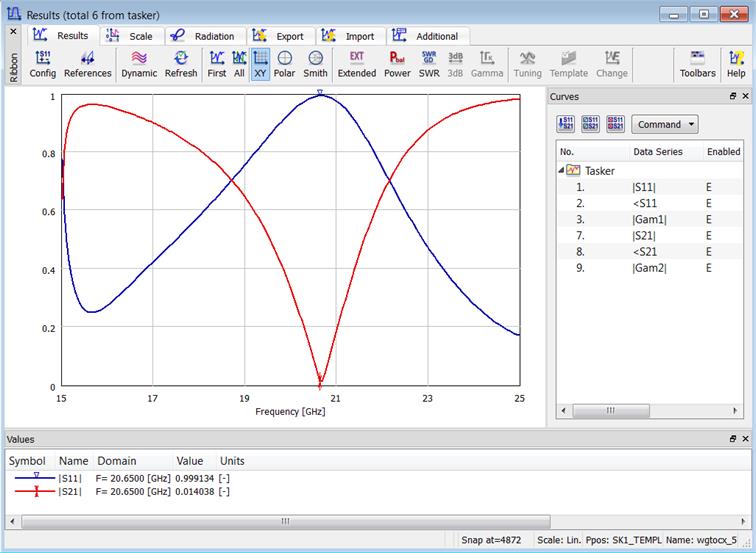

S-parameters calculated for waveguide to coaxial line transition.
Previous step: Defining post-processings for simulation.
Next step: Introducing symmetry plane.
