2.2.8       Lumped Impedances

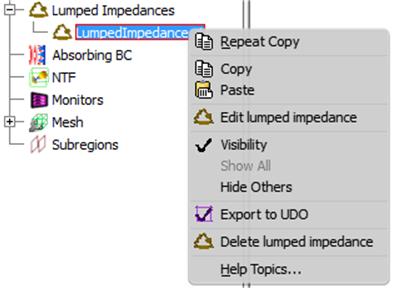

Fig.A 2.2.7-1 Lumped Impedance context menu.

All lumped impedances added to the project are listed in the QW Model tree browser in the Lumped Impedances node (Fig.A 2.2-4). Whenever lumped impedance is selected in the browser tree it will be also highlighted in the model view window and vice versa. To edit existing lumped impedance right-click on that in the QW Model browser panel or in the model view and select Edit lumped impedance from the menu. It is also possible to start editing the lumped impedance by double-clicking on it in the browser. Editing the lumped impedance is similar to adding the new one. The difference is that the edited lumped impedance parameters and geometry are already set up.

To remove the lumped impedance simply select Delete lumped impedance from the context menu.
