2.2.7       Ports

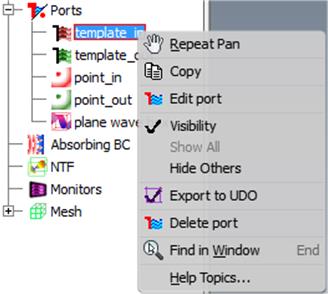

Fig.A 2.2.7-1 Port context menu.

All ports (Template Ports, Point Ports and Plane Wave Boxes) added to the project are listed in the QW Model tree browser in the Ports node (Fig.A 2.2-4). All ports are also visible in the model view window. Whenever port is selected in the browser tree it will be also highlighted in the model view window and vice versa. To edit existing port right-click on that port in the QW Model browser panel or in the model view and select Edit port from the menu. It is also possible to start editing the port by double-clicking on it in the browser. Editing the port is similar to adding the new one. The difference is that the edited port parameters and geometry are already set up.

To remove the port simply select Delete port from the port’s context menu.
