2.5     Axes

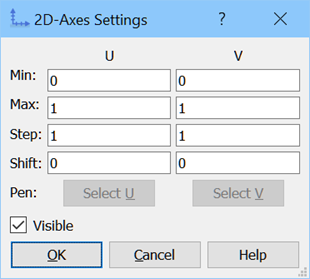

The  button in the 2D Window toolbar and Setup->Axes... command from 2D Window menu invoke 2D-Axes Settings dialogue.

Here we decide how the local coordinate system should be displayed in the 2D Window. Note that the 2D Window is composed in a way to include the entire project and the axes. Thus if the axes are too long or incorrectly situated, and checked as Visible, the project may occupy only a small part of the window and be poorly visible.
