4.2.8 Refine Shape

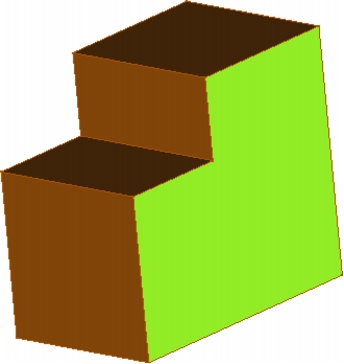

After boolean operations some lines defining the previous form remain visible. After using Transform ® Refine shape command from Geometry tab in the QW-Modeller Ribbon we obtain a newly created copy of the selected object which is cleaned. The newly created copy is independent of the original.

Þ

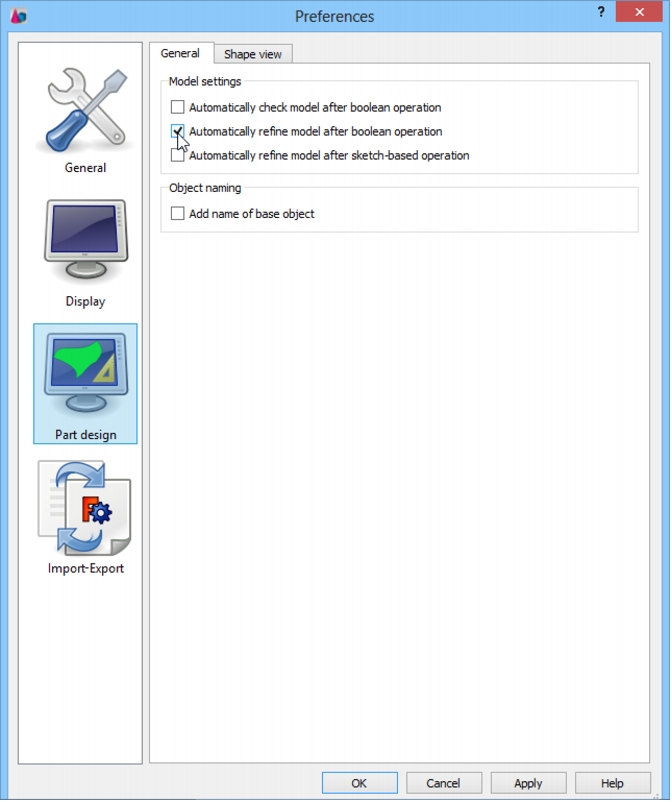

If we want to obtain already refined shape after each boolean operation, we should check the "Automatically refine model after boolean operation" in the Preferences dialogue (see Preferences chapter form more information), Part design section and General tab.
