4.6.3 Loft

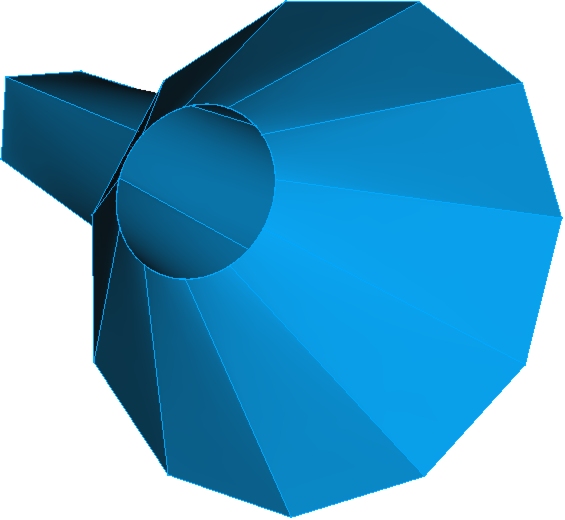

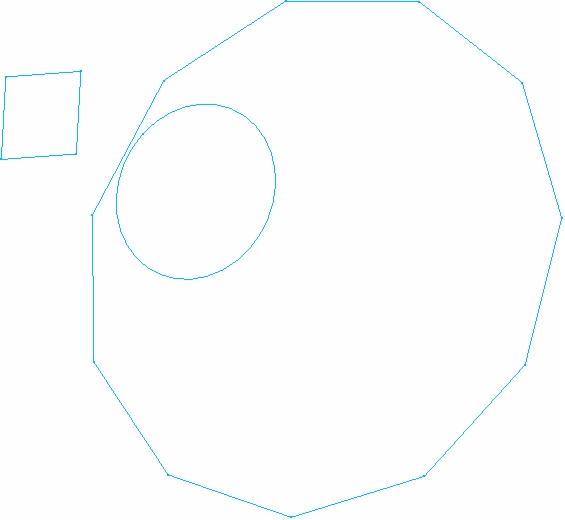

The loft tool is used to create a face, shell or a solid shape from two or more profiles. The profiles can be a point (vertex), line (Edge), wire or face. Edges and wires may be either open or closed

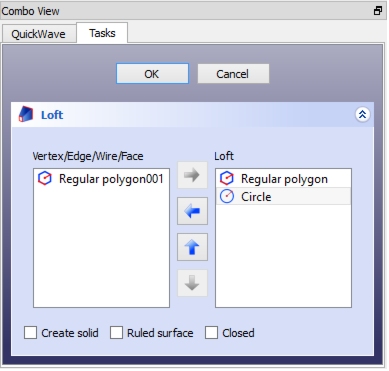

After clicking under button placed in the QW-Modeller Ribbon's Geometry tab, an additional dialogue will appear in the Task Panel. This dialogue allows choosing shapes and modifying various loft parameters.
