26 Septum polariser


This example is available in .../QW-3D/Standard/PassiveComponents/Septpol/septpol1.QWPro in the QW-Modeller examples directory and can be loaded using File®Open Examples... command from main menu.

General Description
Septum polarizer excited with a pulse of spectrum.

Geometry

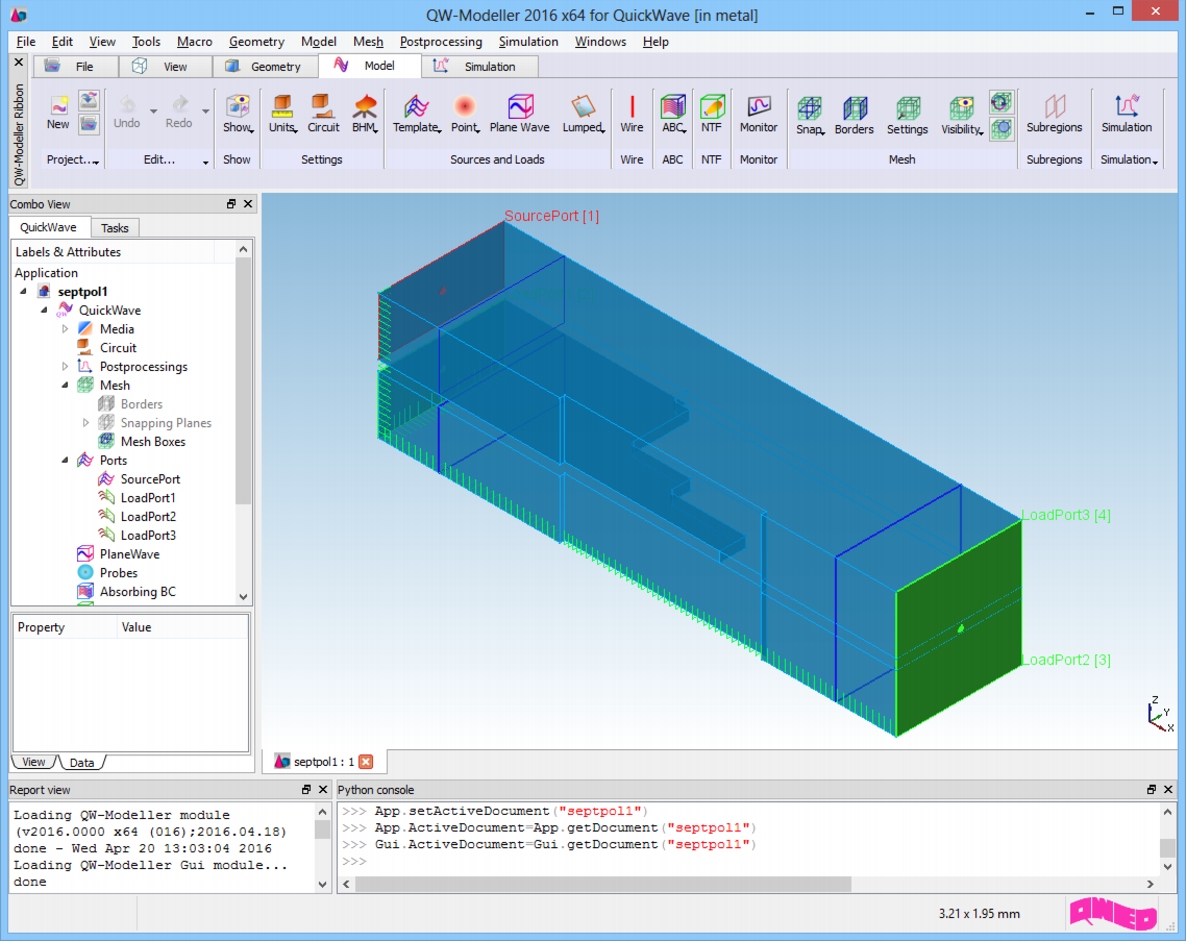

The entire structure is 2.6 inch long. The input waveguide has dimensions 0.622 x 0.286 inch. First output waveguide (below input) has the same dimensions as the input waveguide. The other outputs (on a square waveguide) have dimensions of 0.622 x 0.622 inch. The septum spans the width of the waveguide and its thickness is 0.05 inch.

Post Processing

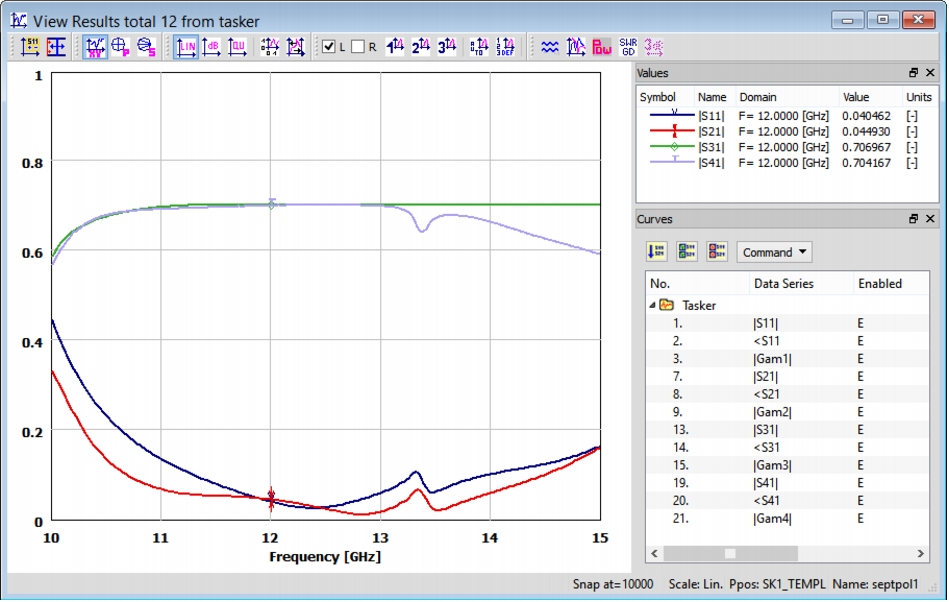

S-parameters of the septum polariser in View Results window.
