25 Ferrite circulator


This example is available in .../QW-3D/Standard/PassiveComponents/FerriteCirculator/ferrite_circulator.QWPro in the QW-Modeller examples directory and can be loaded using File®Open Examples... command from main menu.

General Description
A Y-type stripline ferrite circulator known from the paper "FDTD analysis of microwave circulators involving saturated magnetized ferrites" proposed by J. Lenge, A. Ahland, J. Kastner, and D. Schulz is considered.

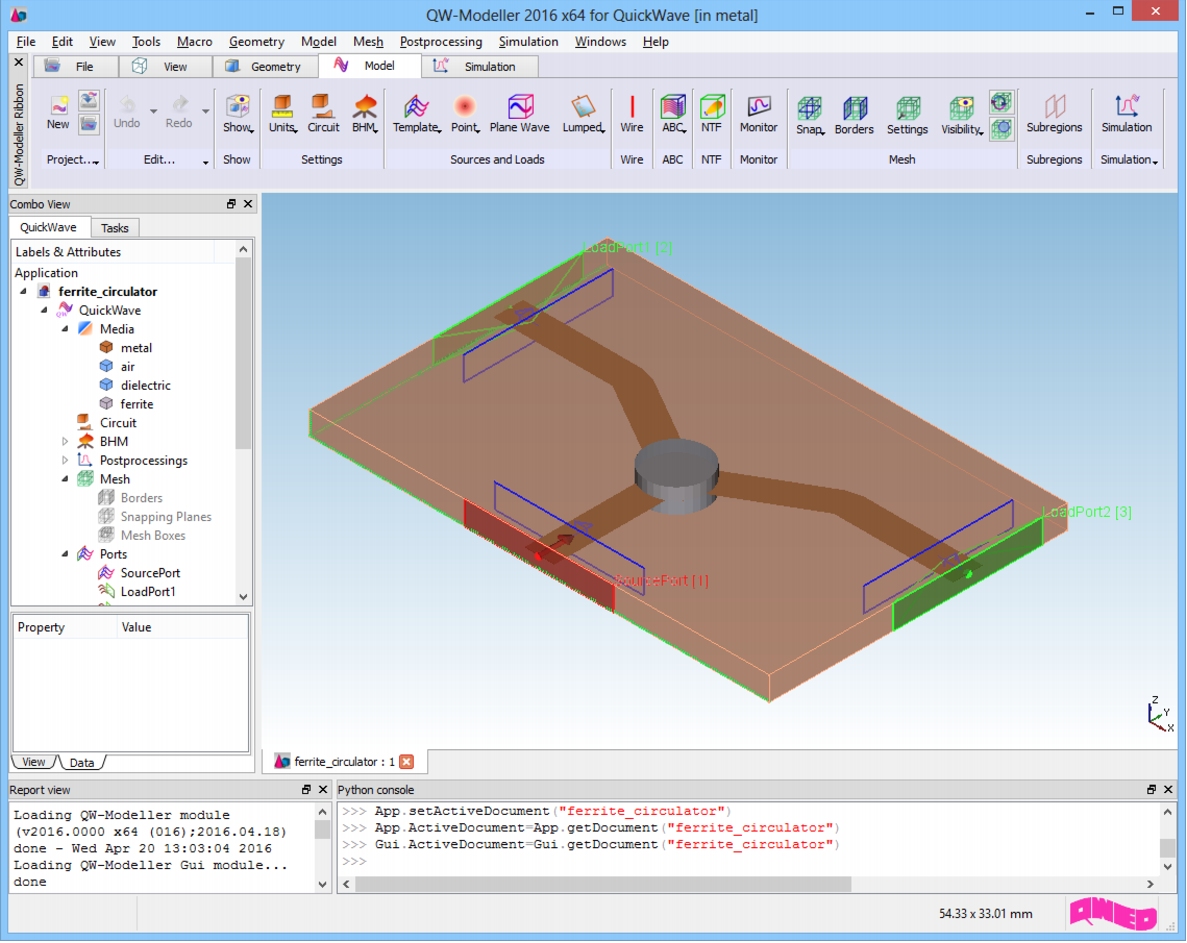

Geometry
The dimensions of the ferrite circulator can be found in the reference paper.

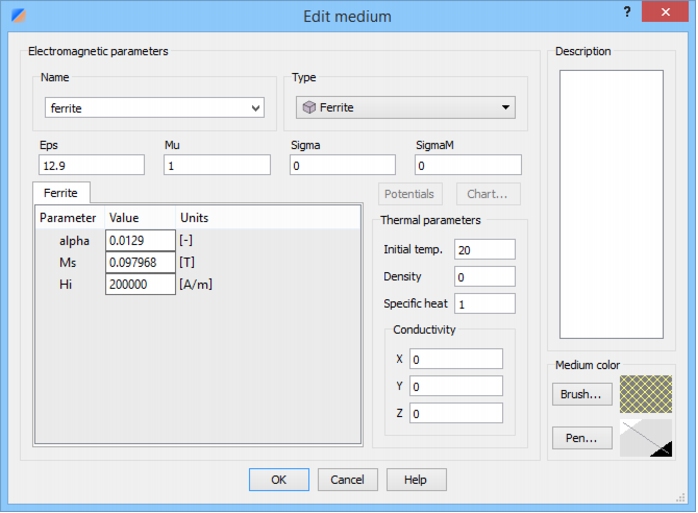

The ferrite pills are 1 mm thick, their diameter is 5 mm and the parameters of the ferrite medium are as shown below.
The relative permittivity of the dielectric substrate is 9.4.


Post Processing

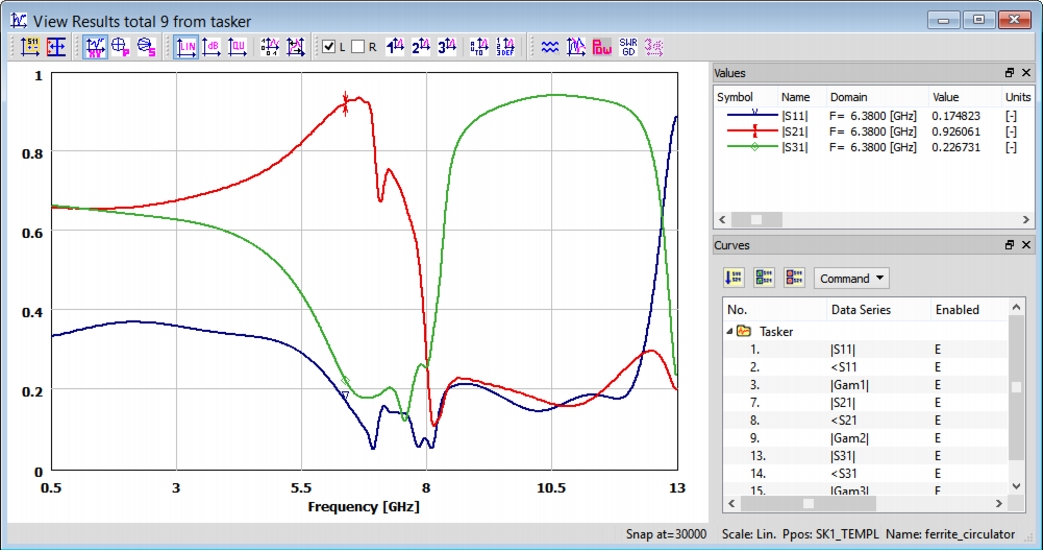

S-parameters for the ferrite circulator in View Results window.
