20 Dispersive cylinder in parallel plate line

This example is available in .../QW-3D/Standard/Materials/Dispersive/parplat_lor3_xy.QWPro in the QW-Modeller examples directory and can be loaded using File®Open Examples... command from main menu.

General Description

Cylinder made of Lorentz three pole dispersive material placed in parallel plate line.

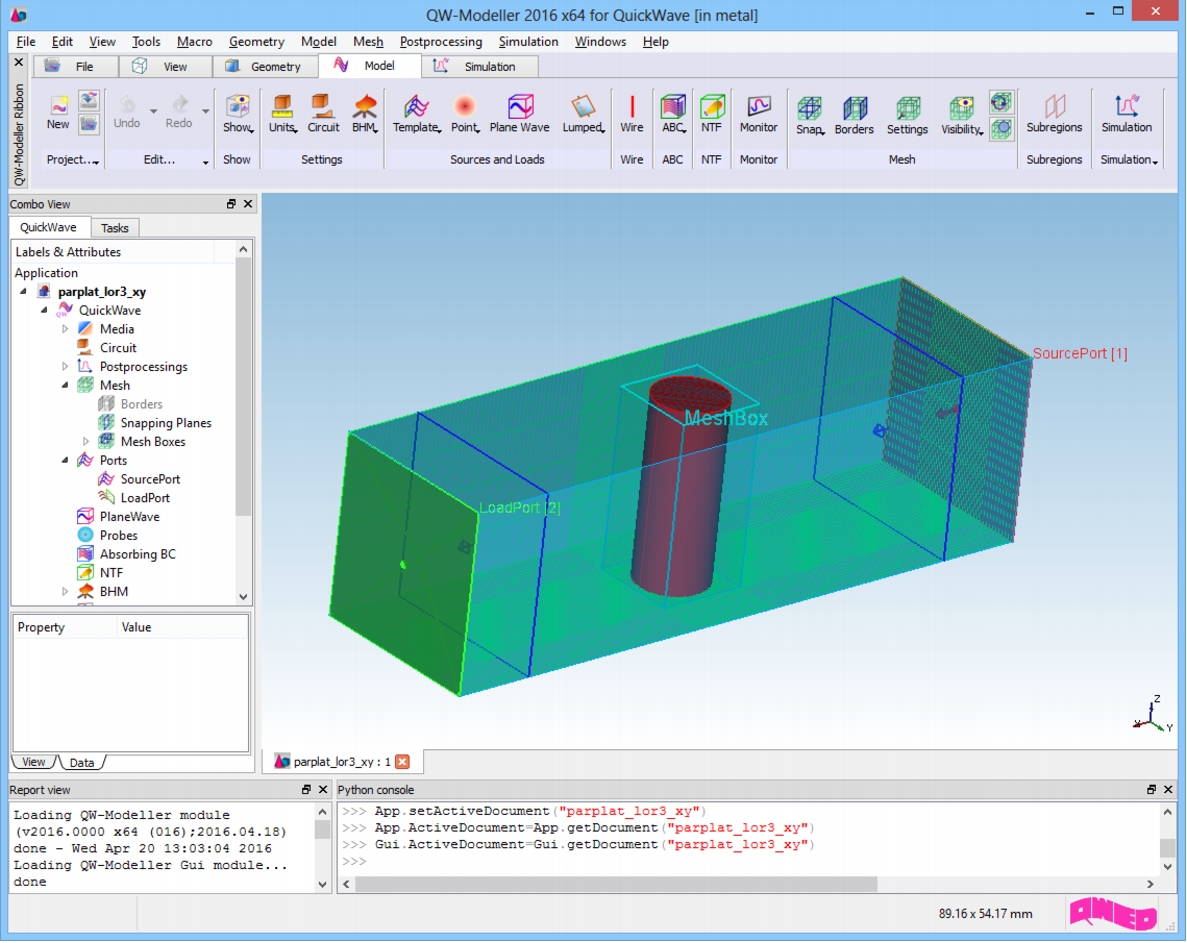

Geometry

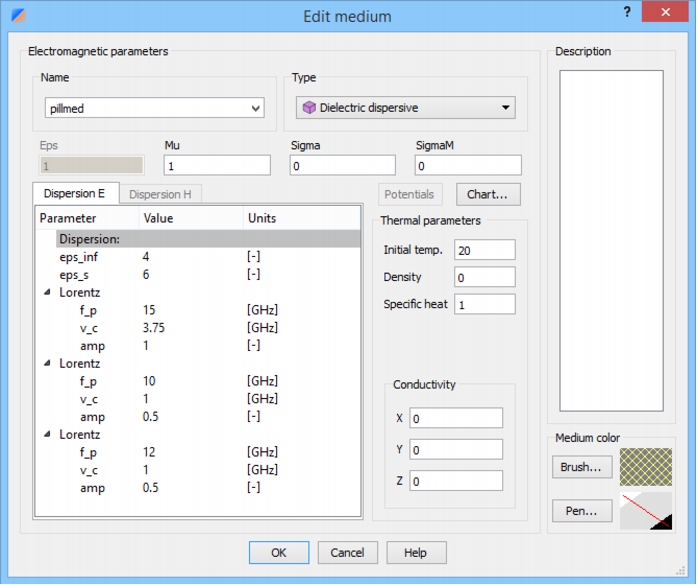

Air filled parallel plate line dimensions are 70 mm, 20 mm, and 20 mm in X, Y, and Z directions respectively. The diameter of cylinder made of dispersive material is 8 mm and its height in Z direction is 20 mm. The dispersive material is three pole Lorentz material with parameters as shown below.

Post Processing

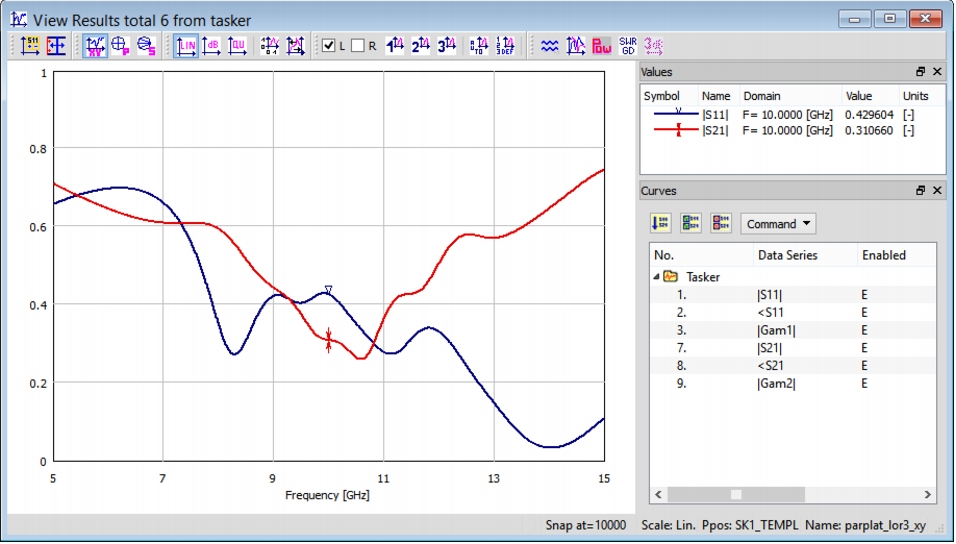

S-parameters for the parallel plate with cylinder made of three pole Lorentz dispersive material.
