1.1      Ribbon

QW-Modeller Ribbon contains all commands needed for creating complete project for FDTD electromagnetic simulation with QuickWave Simulator.

QW-Modeller Ribbon contains of the following tabs:

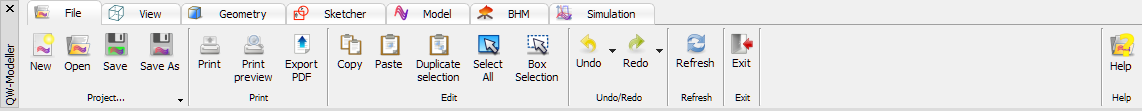

·        File

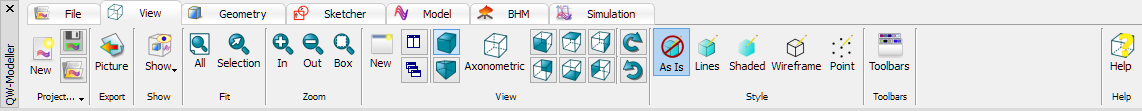

·        View

·        Geometry

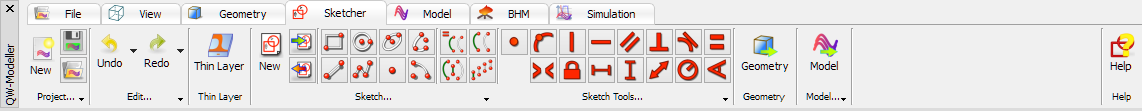

·        Sketcher

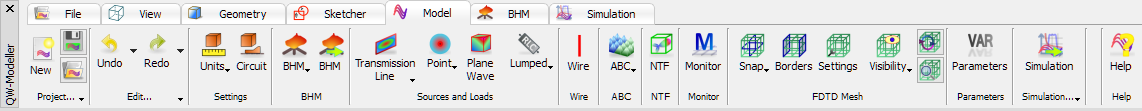

·        Model

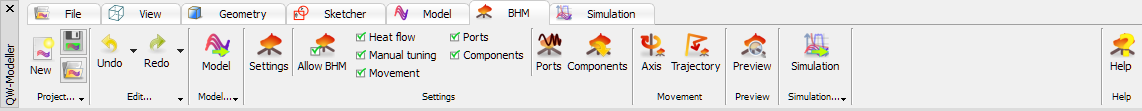

·        BHM

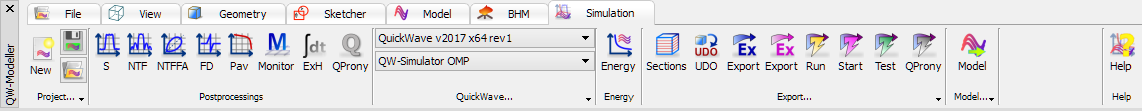

·        Simulation

QW-Modeller Ribbon contains all commands needed for creating complete project for FDTD electromagnetic simulation with QuickWave software for electromagnetic simulations. They are organised in a series of tabs divided in sections and subsections with grouped commands and contain the following types of buttons and controls:

 - small push button

 - big push button

 - on/off button

 - big push button with commands

 - combo box with choices

 - label button with commands
