9.1.1    Main Menu

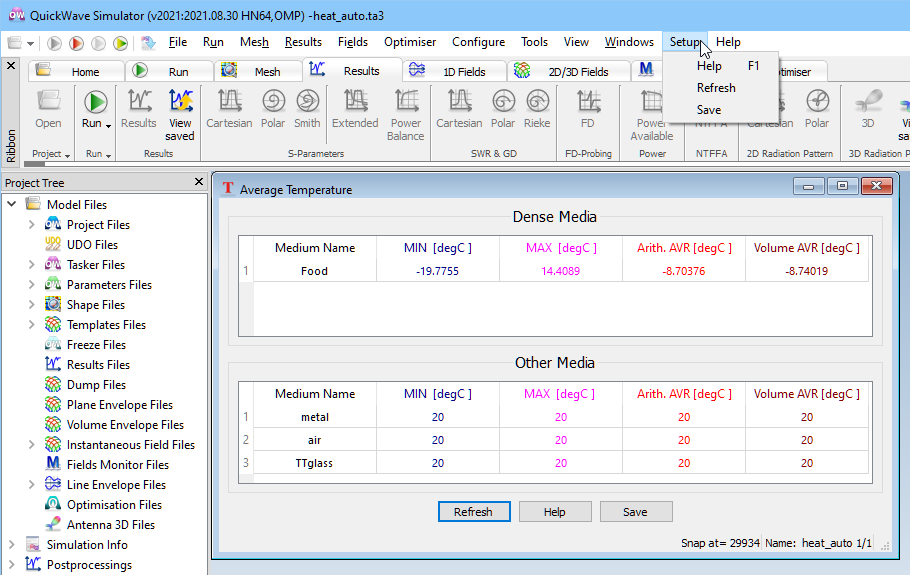

When Average Temperature window is opened, QW-Simulator main menu is supplemented with Setup group of commands dedicated for the active Average Temperature window.

Obraz zawierający stół Opis wygenerowany automatycznie

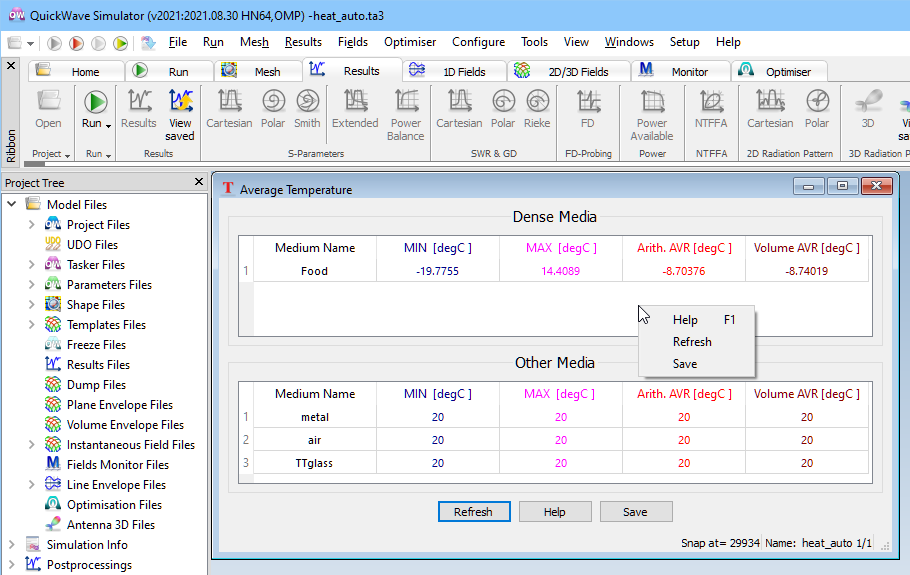

The same commands are also accessible through the context menu, which can be invoked by pressing the right mouse button over the Results Display.

Obraz zawierający tekst, zrzut ekranu, wewnątrz Opis wygenerowany automatycznie



temperature_menu

Main menu of Average Temperature window contains the following commands:

menu_button_help - opens help for Average Temperature window (present chapter)

menu_refresh - refreshes all temperature results

menu_button_save - saves current temperature results in *.mt3 file

menu_button_real - displays the temperature results for the real grid (available in the analysis of periodic structures - 3DP circuit type)

menu_button_imag - displays the temperature results for the imaginary grid (available in the analysis of periodic structures - 3DP circuit type)
