8.1.1    Main Menu

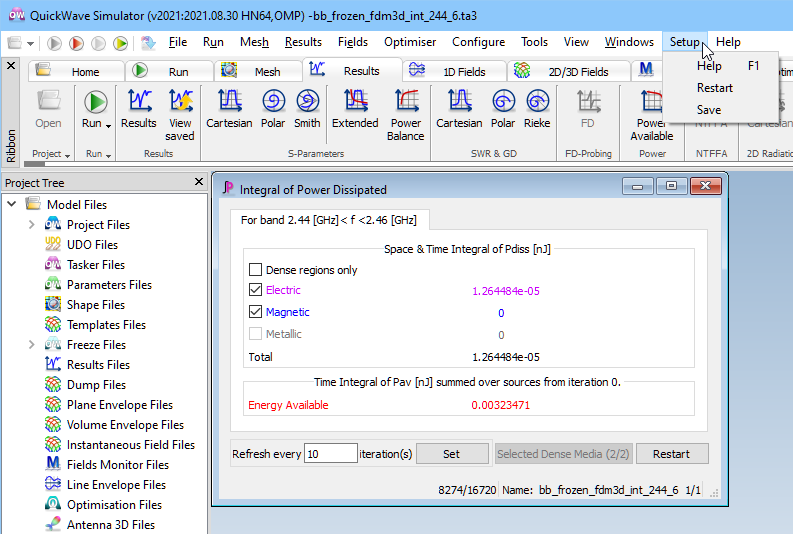

When Integral of Power Dissipated window is opened, QW-Simulator main menu is supplemented with Setup group of commands dedicated for the active Integral of Power Dissipated window.

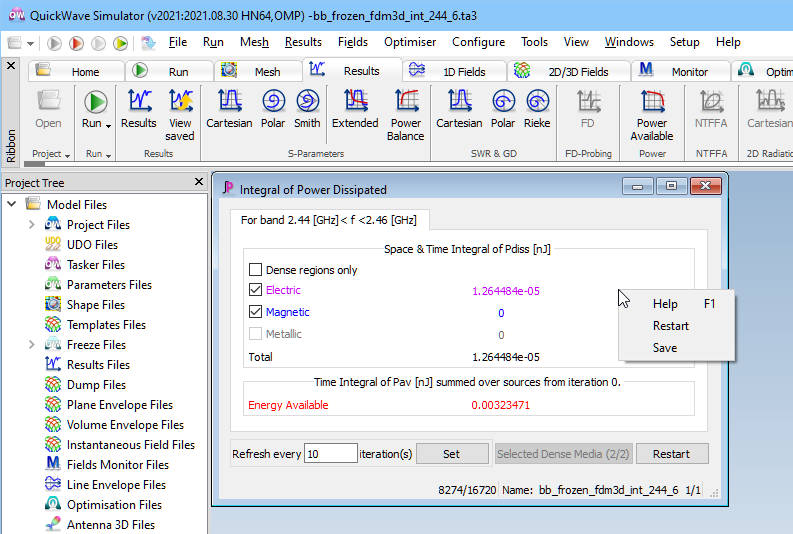

The same commands are also accessible through the context menu, which can be invoked by pressing the right mouse button over the Results Display.



menu_reim2

Main menu of Integral of Power Dissipated window contains of the following commands:

menu_button_help - opens help for Integral of Power Dissipated window (present chapter)

menu_button_restart - resets the results and restarts the space and time integration of power dissipated at the particular iteration

menu_button_real - displays the results for the real grid (available in the analysis of periodic structures - 3DP circuit type)

menu_button_imag - displays the results for the imaginary grid (available in the analysis of periodic structures - 3DP circuit type)

menu_button_save - saves the results of power dissipated integration in *.pq3 file
