7.1.1    Main Menu

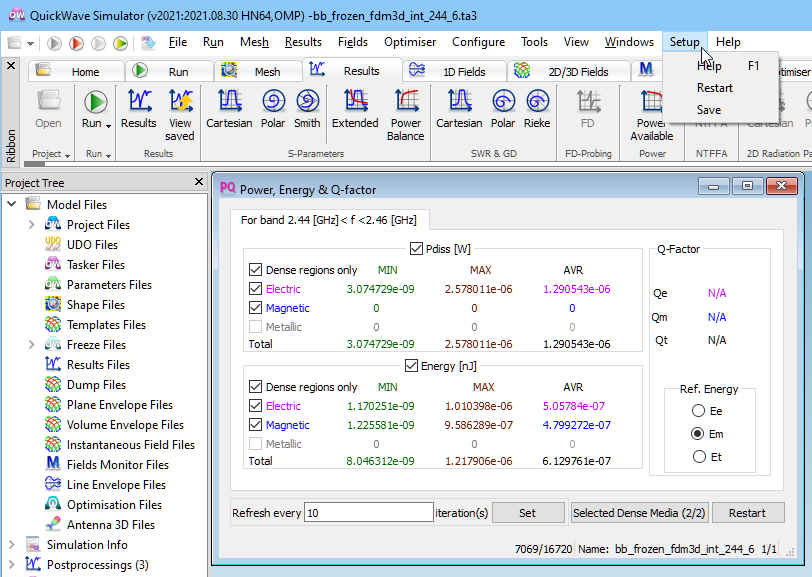

When Power, Energy & Q-factor window is opened, QW-Simulator main menu is supplemented with a Setup group of commands dedicated for the active Power, Energy & Q-factor window.

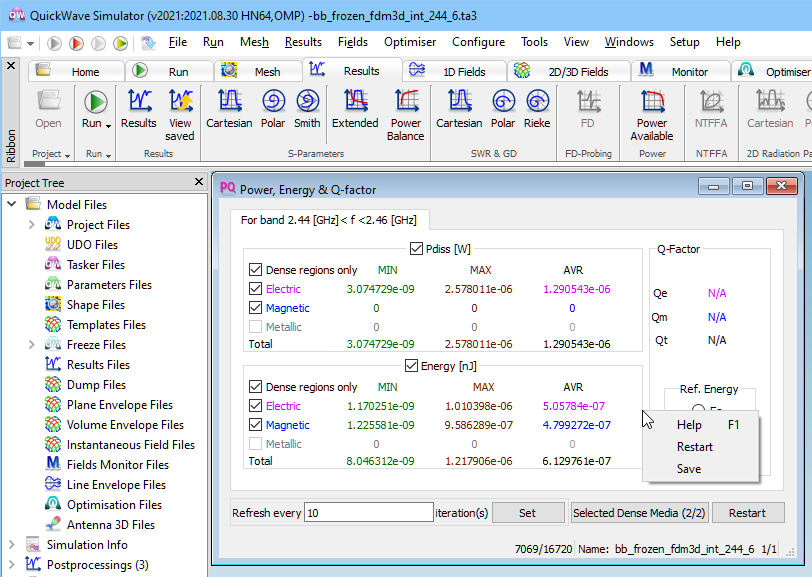

The same commands are also accessible through the context menu, which can be invoked by pressing the right mouse button over the Results Display.



menu_reim2

Main menu of Power, Energy & Q-factor window contains the following commands:

menu_button_help - opens help for Power, Energy & Q-factor window (present chapter)

menu_button_restart - resets all the results and restarts integration in space at a particular iteration

menu_button_real - displays the results for the real grid (available in the analysis of periodic structures - 3DP circuit type)

menu_button_imag - displays the results for the imaginary grid (available in the analysis of periodic structures - 3DP circuit type)

menu_button_save - saves the results of power dissipated, energy stored, and Q-factors in *.pq3 file
