5.9.8    BoR (V2D) View Options

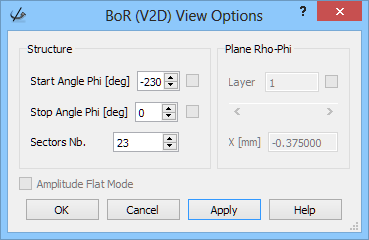

The button_structure_v2d3d button in Structure tab and or Type->Surface->Structure Switch->V2D Structure View… or Type->Vector->Structure Switch->V2D Structure View… command from main menu or context menu invoke BoR (V2D) View Options dialogue for 3D display of the axisymmetrical V2D project structure.





The 3D geometry of the axisymmetrical V2D structure will be displayed between Start Angle Phi and Stop Angle Phi discretised into Sectors Nb. in the angular direction. A sector between Stop Angle Phi and Start Angle Phi will be empty, and hence it will be convenient to watch the fields in the xρplanes at Start Angle Phi and Stop Angle Phi. These two displays are activated by checking the two respective checkboxes.
