5.9.13                    Info

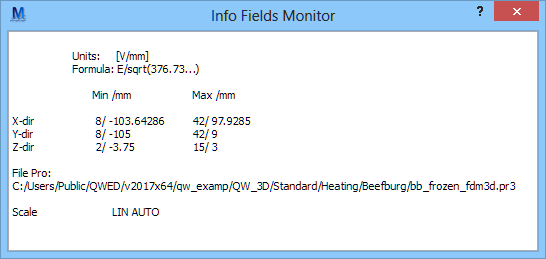

The View Info… command from main menu or context menu invokes Info Fields Monitor dialogue.

The following information are displayed: units for displayed field; dimensions of the display volume (set in Volume Limit dialogue) in all three directions, with minimum and maximum values specified both in cells and in millimetres; name of project file *.pro, from which structure data was loaded; and information about linear/decibel scale.
