5.1.6    Colour Bar

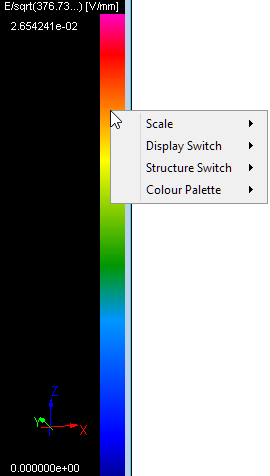

The right side of the display contains the Colour Bar for visualisation of the colour palette, range from minimum to maximum values described with colours, and information about units and formula for current component.

See Colour Bar for 2D/3D Fields Distribution window chapter for commands description.

Colour bar is not displayed for Points and Lines displays.

Colour bar for Art displays is a movable and configurable widget.
