4.14.1                    QuickWave Simulator

In version of the QuickWave Simulator 2023 user can set NTN postprocessing for arbitrary 3D points cloud for V2D axisymmetric BOR models. Most settings are similar to 3D NTN settings. Below there are some figures of two modified V2D standard QuickWave models with NTN added processing and results.

4.14.1.1              Model dm_horn_ntn

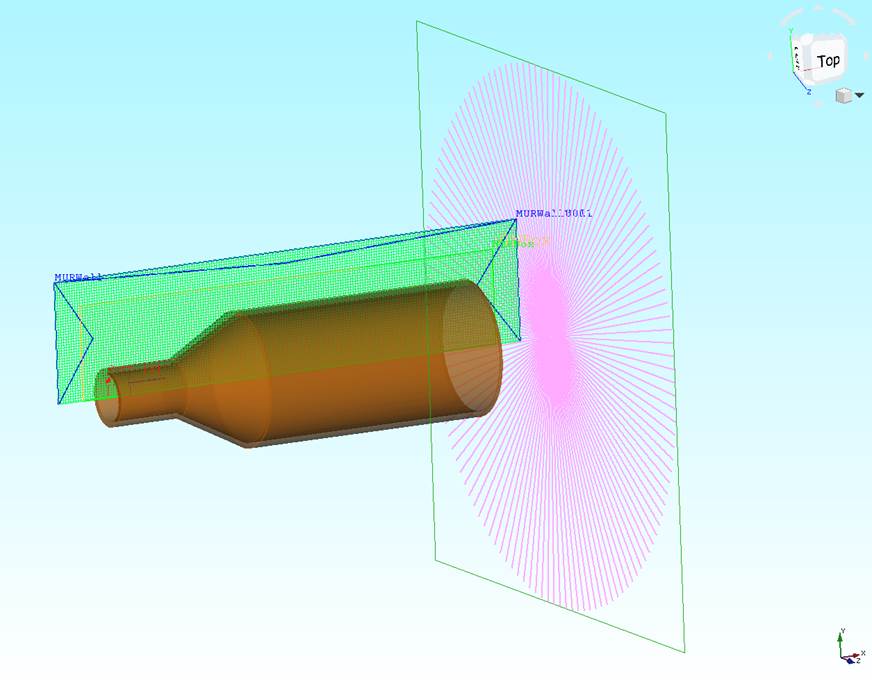

Fig.15 Model dm_horn_ntn.QWpro in QuickWave modeller with points cloud (magenta)

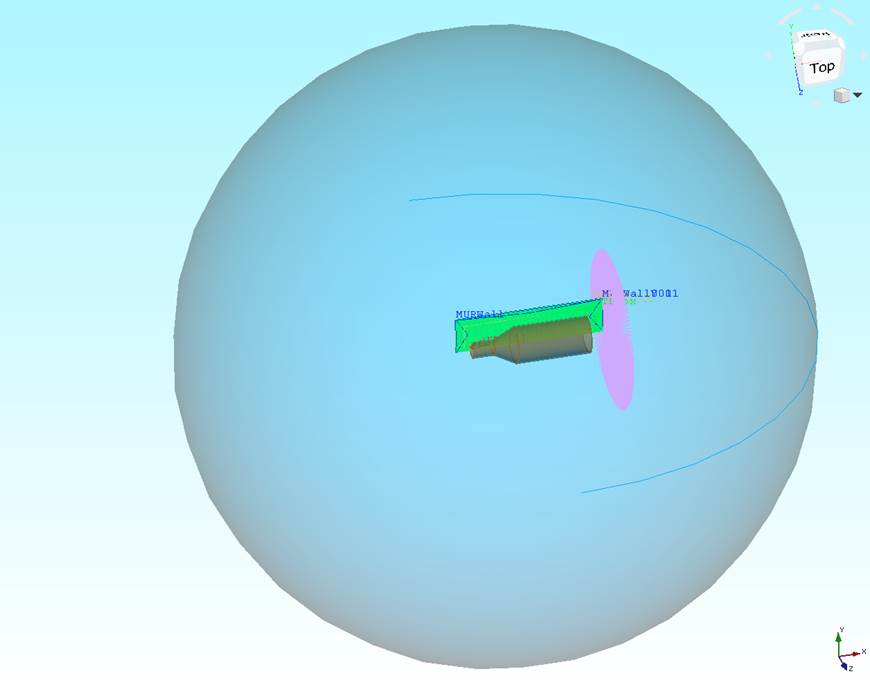

Fig.16 Model dm_horn_ntn.QWpro in QuickWave modeller with exemplary “Fraunhofer” sphere for 12 GHz

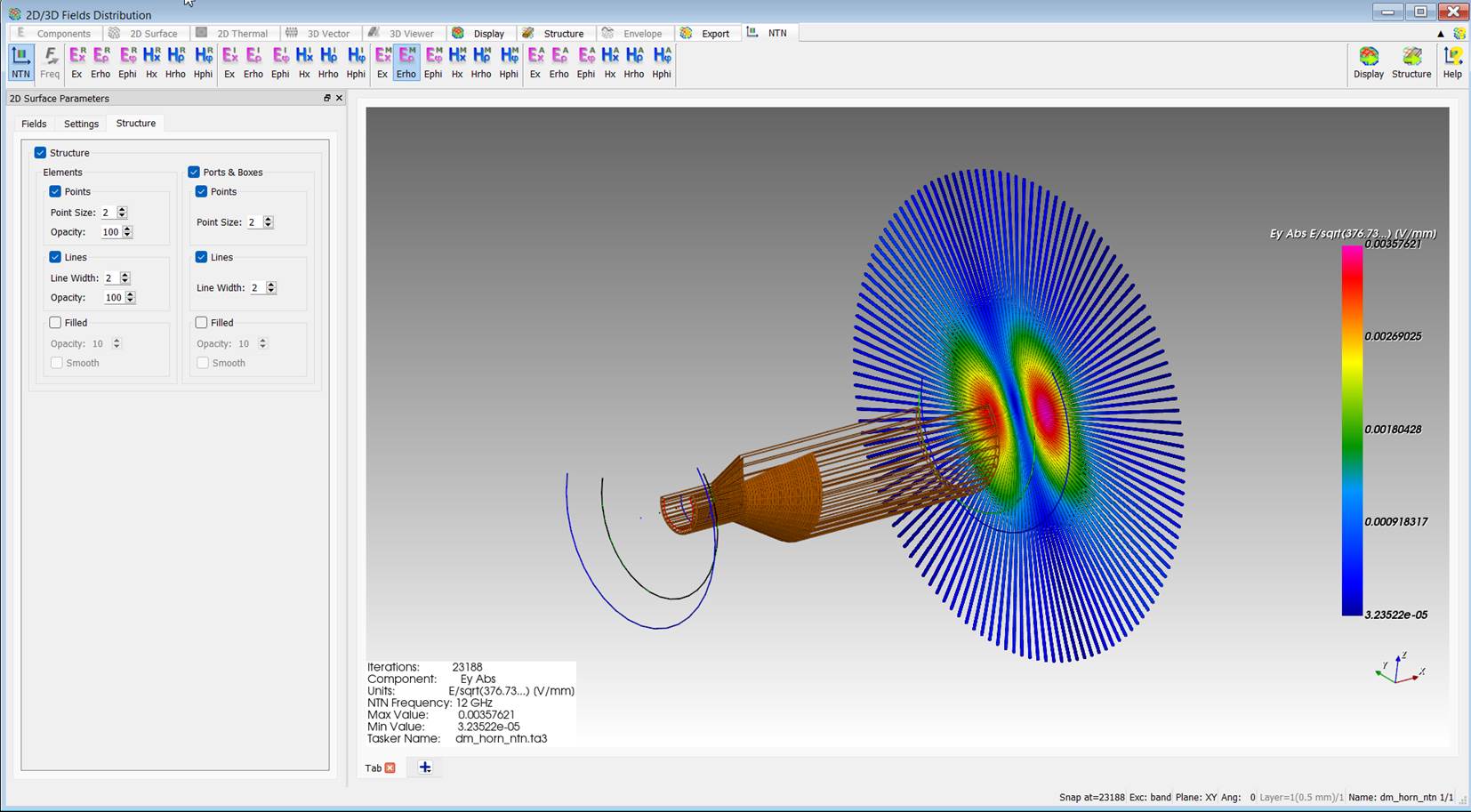

Fig.17 Model dm_horn_ntn.QWpro in QuickWave simulator NTN postprocessing result - |Ero|

4.14.1.2              Model cassant1_ntn

Model cas1_ntn.QWpro is modified from standard example V2D model cassant1.QWpro.

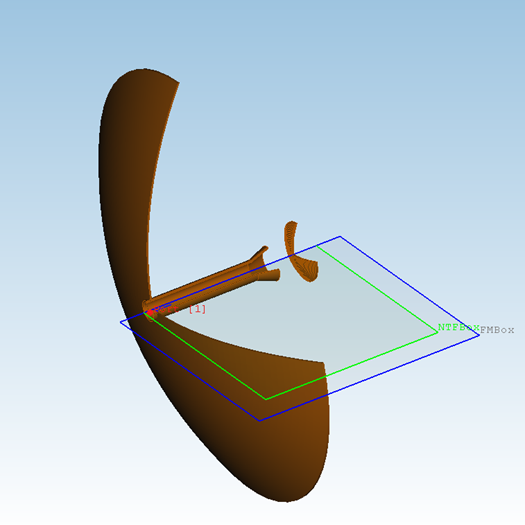

Fig.18 QW-Modeller view of the original cassant1.QWpro model. Big reflector cross section is included in the FDTD V2D simulation area (blue rectangle).

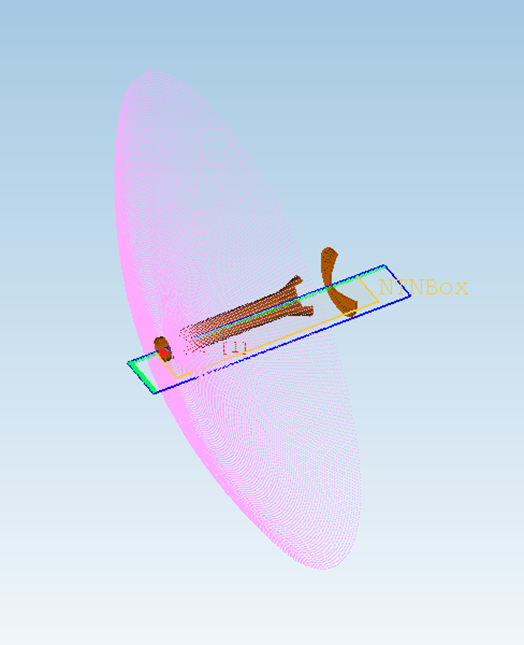

Fig.19 QW-Modeller view of the original cassant1_ntn.QWpro model. Big reflector cross section is NOT included in the FDTD V2D simulation area (blue rectangle). Magenta points cloud is included for NTN V2D postprocessing to calculate fields in the shape position of the big reflector.

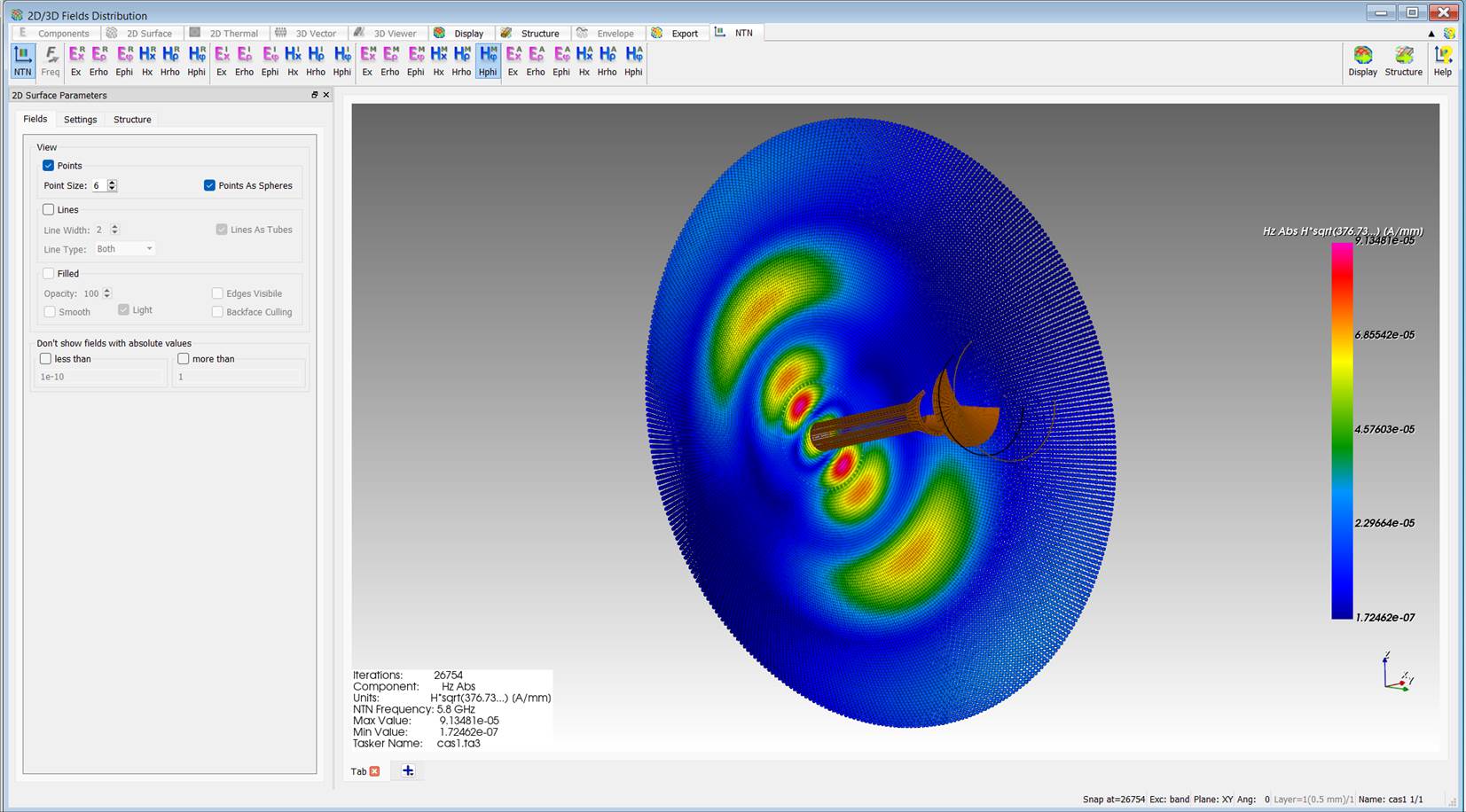

Fig.20 Examplary result of the NTN postprocesswing for cassant1_ntn.QWpro model for |Hphi| component 5.8 GHz.
