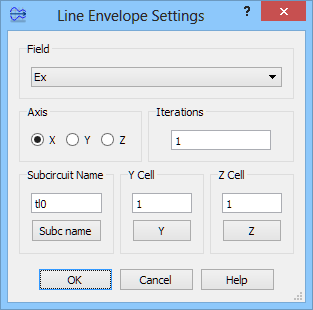

15.3.7                    Line Envelope Settings

The Line Envelope Settings dialogue can be invoked using Envelope Settings button in the Add Breakpoint and Edit Breakpoint dialogues.

The Line Envelope Settings dialogue allows choosing additional settings for saving envelope results with Save Line Envelope command.

The Field component, Axis (X, Y or Z), and position of the axis (in FDTD cells: for example, YCell and ZCell if Axis=X) must be set as well as the number of Iterations for envelope construction. Pressing X, Y or Z button (depends on the Axis) invoke Set Cell dialogue for setting position expressed in the FDTD cells.

The Subc name button invokes Subcircuit Name dialogue for setting the name of subcircuit that the results will be extracted from.
