15.3.21                Save Enthalpy (ReIm)

The Save Enthalpy (ReIm) dialogue can be invoked using Enthalpy Settings button in the Add Breakpoint and Edit Breakpoint dialogues.

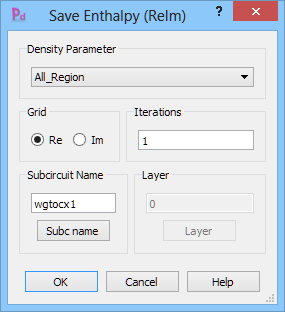

The Save Enthalpy (ReIm) dialogue allows choosing additional settings for saving integral of power dissipated (enthalpy) results with Save Enthalpy ReIm command.

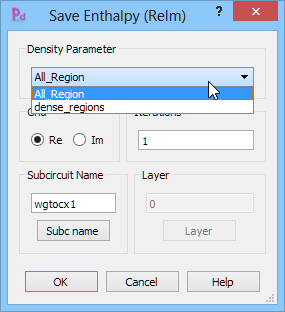

The Density Parameter allows controlling regions of integral of power dissipated calculations:

·       All_Region - integral of power dissipated is integrated over the whole circuit

·       dense_regions - reduces the regions of integration to regions of non-zero material density

The integration can be performed on real (Re) or imaginary (Im) FDTD grid (in the case of periodic 3DP circuits).

Also the number of Iterations for integration should be set.

The Subc name button invokes Subcircuit Name dialogue for setting the name of subcircuit that the results will be extracted from.
