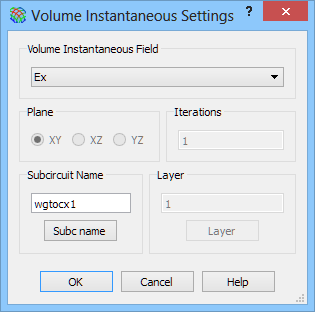

15.3.14                Volume Instantaneous Settings

The Volume Instantaneous Settings dialogue can be invoked using Instant. Settings button in the Add Breakpoint and Edit Breakpoint dialogues.

The Volume Instantaneous Settings dialogue allows choosing additional settings for saving volume instantaneous with Save Volume Instantaneous and Save Full Volume Instantaneous commands.

The Volume Instantaneous Field component must be set.

The Subc name button invokes Subcircuit Name dialogue for setting the name of subcircuit that the results will be extracted from.
