12.4.2                    Exporting mesh view as a picture

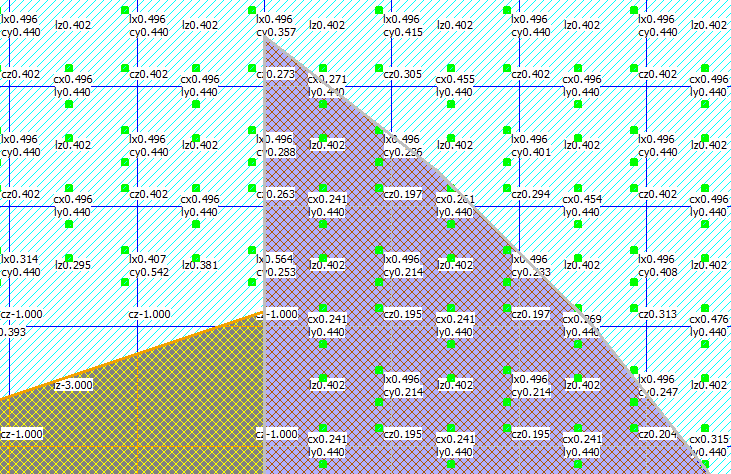

The displayed FDTD mesh can be exported as a picture to *.bmp, *.jpg, or *.png file format using , ,  or  buttons from Export tab and Export->Export to… or Export->Save Picture… commands from main menu or context menu. The picture quality (the default is the best quality) for JPG format can be set in the View tab in the Preferences dialogue.

The displayed FDTD mesh can be copied to the Clipboard using  button from Export tab and Export->Copy to Clipboard command from main menu or context menu.
