12.1.4                    Display

The following FDTD mesh displays are available:

• Mesh display

• LC display

The Mesh display shows the effective FDTD mesh.

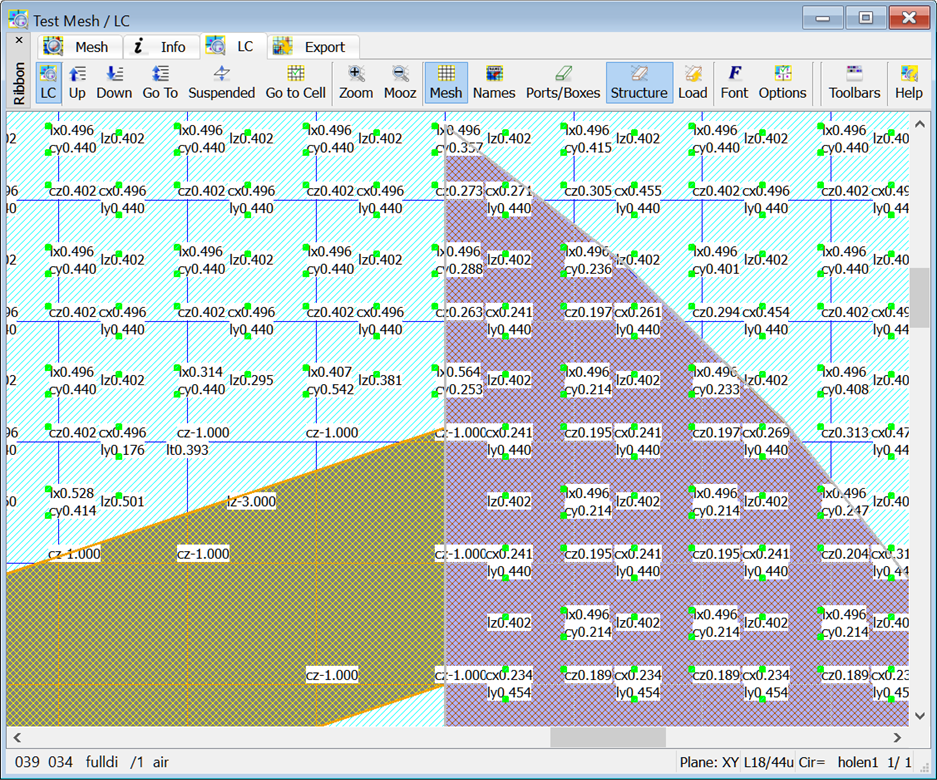

The LC display is the advanced mode of Test Mesh window and shows the coefficients used in FDTD simulation.
