6.3     Load Dispersive Eps

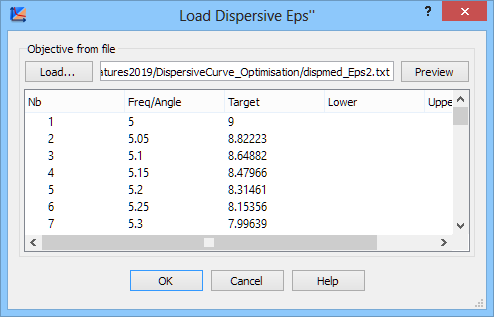

 - loads a *.txt file with dispersive curve definition. The format of this file should be 2-column data as follows:

5             9

5.05        8.822227

5.1          8.648823

5.15        8.479659

5.2          8.314612

5.25        8.153558

5.3          7.996389

5.35        7.842991

5.4          7.693254

5.45        7.547079

5.5          7.40436

where, the first column values are frequency values expressed in [GHz], and the second column contains ε’ or ε” values.

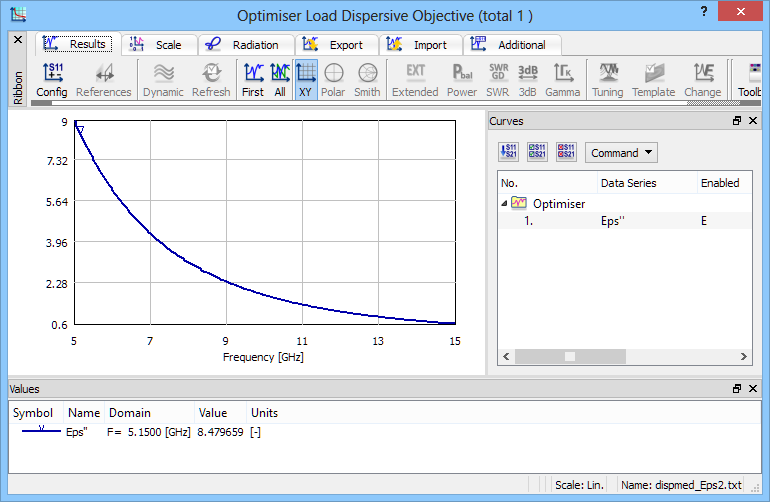

 - invokes Results window to graphically preview the loaded ε’ (Eps’) or ε” (Eps’’) dispersive curves.
