6.1     Dispersive Model Fitting Configuration

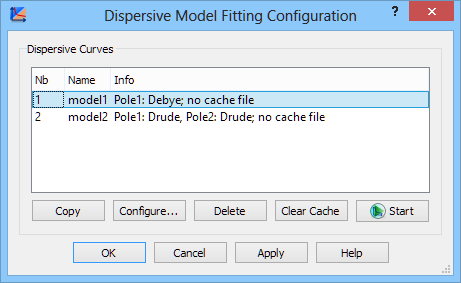

The  command from Optimiser menu of QW-Simulator main menu and the  button in Optimiser tab of QW-Simulator Ribbon invoke Dispersive Model Fitting Configuration dialogue for introducing and managing dispersive curves for which the dispersive model fitting will be performed.

 - adds empty set of dispersive curves

 - copies selected dispersive curves

 - invokes Dispersive Curve dialogue for introducing dispersive curves of electric permittivity being a subject of dispersive model fitting procedure

 - deletes selected dispersive curves

 - clears the contents of the dispersive model fitting cache for selected dispersive curves

 - starts the dispersive model fitting process for selected dispersive curves. If cache exists, cache contents are taken into account while searching for an optimum solution
