6.15 Edit NTN

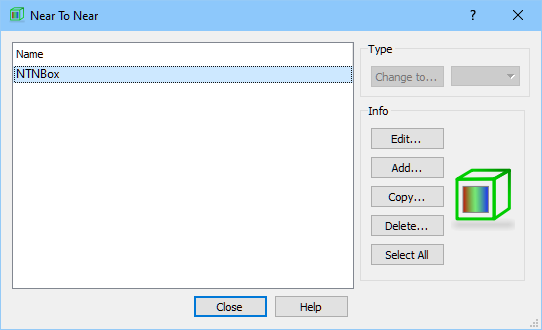

The  command from Edit section in  button in Model tab and I/O Ports->Near To Near->(Edit) NTN... command from main menu invoke Near To Nar dialogue for managing NTN box.

The list contains all NTN boxes defined in the project and their names are presented. Each box on the list can be selected and multiple selections are available with Ctrl key.

Edit... button or double click on the port on the list opens NTN dialogue for editing the selected NTN box.

Add... button opens NTN dialogue for adding NTN box.

Copy... button creates a copy of each selected NTN box.

Delete... button removes each of the selected NTN box.

Select All button allows selecting all ports from the list.
