2.25 Wire Change

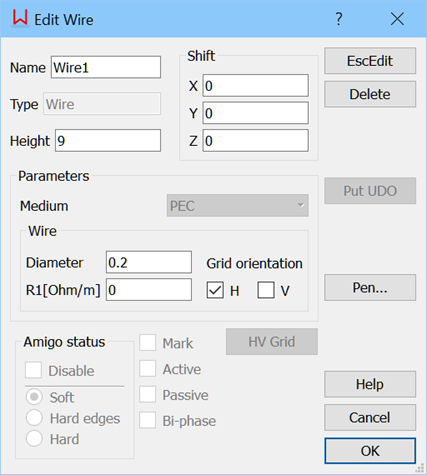

The Edit Wire dialogue allows changing position and parameters of wire and can be invoked from Select Element dialogue or from Edit Element context menu.

Name is the name of the element and it can be changed here.

Type is Wire and it cannot be changed here.

Height is the height of the wire, originally set in the Define Level dialogue when drawing the wire and it can be changed here.

Shift frame allows shifting the wire in space.

The wire diameter (should be set in current project units) and also wire resistance and wire orientation can be set.

Pen allows changing the element display colour in QW-Editor, without changing its medium. Note that the element display in QW-Simulator will still be governed by the medium.

EcsEdit exits the dialogue and escapes the the Edit Element mode (the cursor in the 2D Window return to arrow). OK or Cancel exit the dialogue but do not escape the Edit Element mode (the cursor in the 2D Window remains square).
