2.23 Object Change

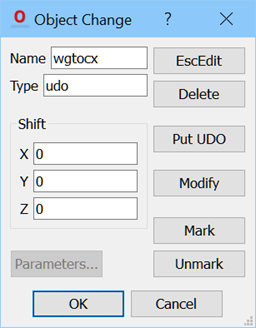

The Object Change dialogue allows moving a selected object, deleting it or changing its parameters and can be invoked from Edit Object context menu.

In the case of external objects (denoted by Type: udo in the Select Object dialogue) one can use the Select button in the Select Object dialogue that will open the Add Object dialogue with the object’s parameters. One can change these parameters and draw the object again. Internal objects (denoted by Type: normal in the Select Object dialogue) can only be shifted, deleted or marked / unmarked for further Reporoduce operations.

EcsEdit exits the dialogue and escapes the the Edit Object mode (the cursor in the 2D Window return to arrow). OK or Cancel exit the dialogue but do not escape the Edit Object mode (the cursor in the 2D Window remains square).
