9.5     Model Results

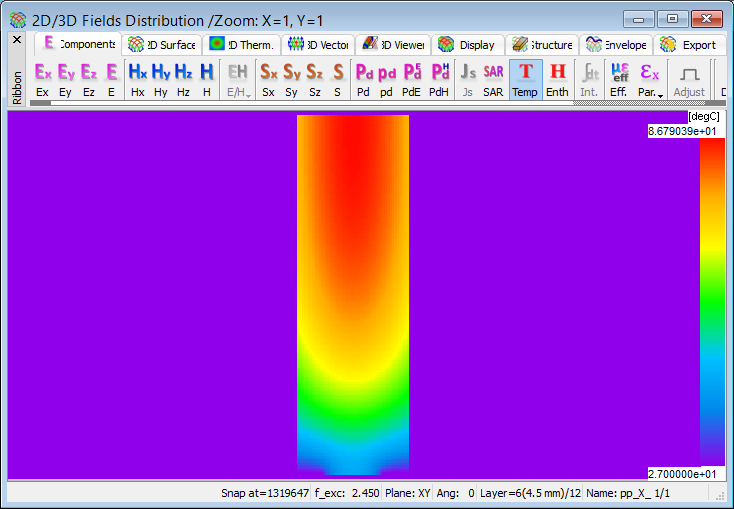

 Temperature distribution (values expressed in [degC]) can be observed online in the 2D/3D Fields Distribution window or from volume instantaneous *.vi3 file by using  button in 2D/3D Fields tab of QW-Simulator and Fields->Saved 2D/3D Fields command from main menu of QW-Simulator.

 Enthalpy density in [J/cm^3] unit values can be observed online in the 2D/3D Fields Distribution window or from volume instantaneous *.vi3 file by using  button in 2D/3D Fields tab of QW-Simulator and Fields->Saved 2D/3D Fields command from main menu of QW-Simulator.

 Enthalpy density distribution (values expressed in [J/cm^3]) can be observed online in the 2D/3D Fields Distribution window or from volume instantaneous *.vi3 file by using  button in 2D/3D Fields tab of QW-Simulator and Fields->Saved 2D/3D Fields command from main menu of QW-Simulator.

 Distribution of velocity in X direction (in [cm/s]) can be loaded from previously saved (if activated in *.ff3 file) *.vi3 files by using  button in 2D/3D Fields tab of QW-Simulator and Fields->Saved 2D/3D Fields command from main menu of QW-Simulator.

The name of the file is created according to the following scheme:

projectname_NoofBHMStep_FFM_VELOCITY_X_Noof FFM.vi3

where,

NoofBHMStep - is a number of the BHM step in which the data were calculated, FFM_VELOCITY_X - is a key word indicating which variable is stored in the file

Noof FFM - is a number of the fluid flow module (fluid medium). If the circuit contains only one fluid flow module, the part _Noof FFM will be omiited.

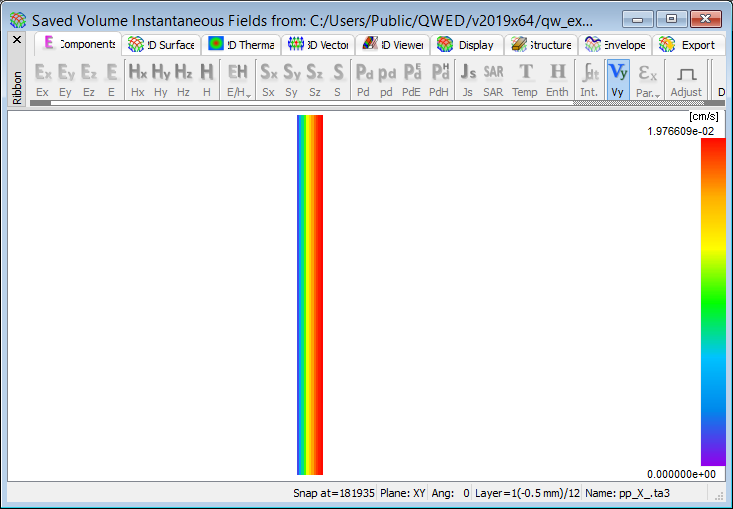

 Distribution of velocity in Y direction (in [cm/s]) can be loaded from previously saved (if activated in *.ff3 file) *.vi3 files by using  button in 2D/3D Fields tab of QW-Simulator and Fields->Saved 2D/3D Fields command from main menu of QW-Simulator.

The name of the file is created according to the following scheme:

projectname_ NoofBHMStep _FFM_VELOCITY_Y_ Noof FFM.vi3

 Distribution of velocity in Z direction (in [cm/s) can be loaded from previously saved (if activated in *.ff3 file) *.vi3 files by using  button in 2D/3D Fields tab of QW-Simulator and Fields->Saved 2D/3D Fields command from main menu of QW-Simulator.

The name of the file is created according to the following scheme:

projectname_NoofBHMStep_FFM_VELOCITY_Z_ Noof FFM.vi3

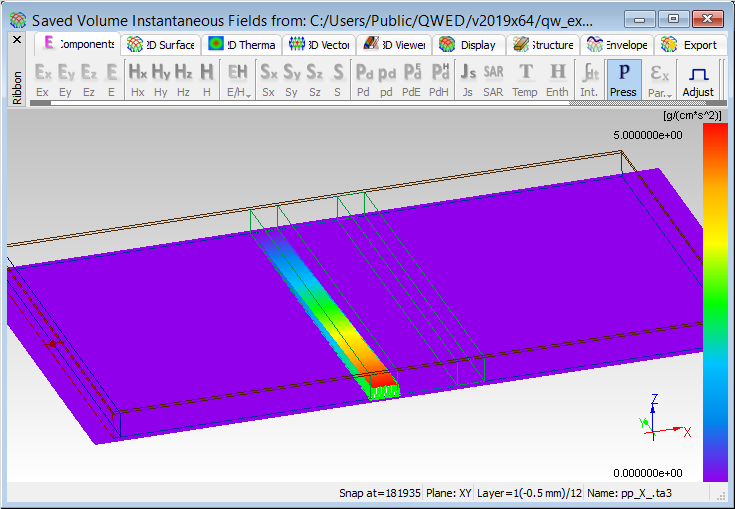

 Pressure in [g/(cm*s^2)] unit are being loaded from *.vi3 files by using  button in 2D/3D Fields tab of QW-Simulator and Fields->Saved 2D/3D Fields command from main menu of QW-Simulator.

Name of the file is created according to the scheme:

projectname_NoofBHMStep_FFM_PRESSURE _ Noof FFM.vi3

Note: Examples library includes a simulation project demonstrating the fluid flow regime operation. The example can be found in qw_examp\QW_3D\BHM\Heat_FluidFlow\ directory. Please note that for this example, the default boundary conditions (DefaultBC) in HFM INI tab of Preferences window, available in Configure menu of QW-Simulator, need to be set to Adiabatic.
