14.9 Executing final Macro in empty project

The Execute macro dialogue can be invoked using Macro−→Macros... command from the main menu.

Figure 5: Upon selecting the directory where the source code is located, the dialogue window will display executable scripts found within it. It is necessary to choose the desired macro and subsequently click the Execute button.

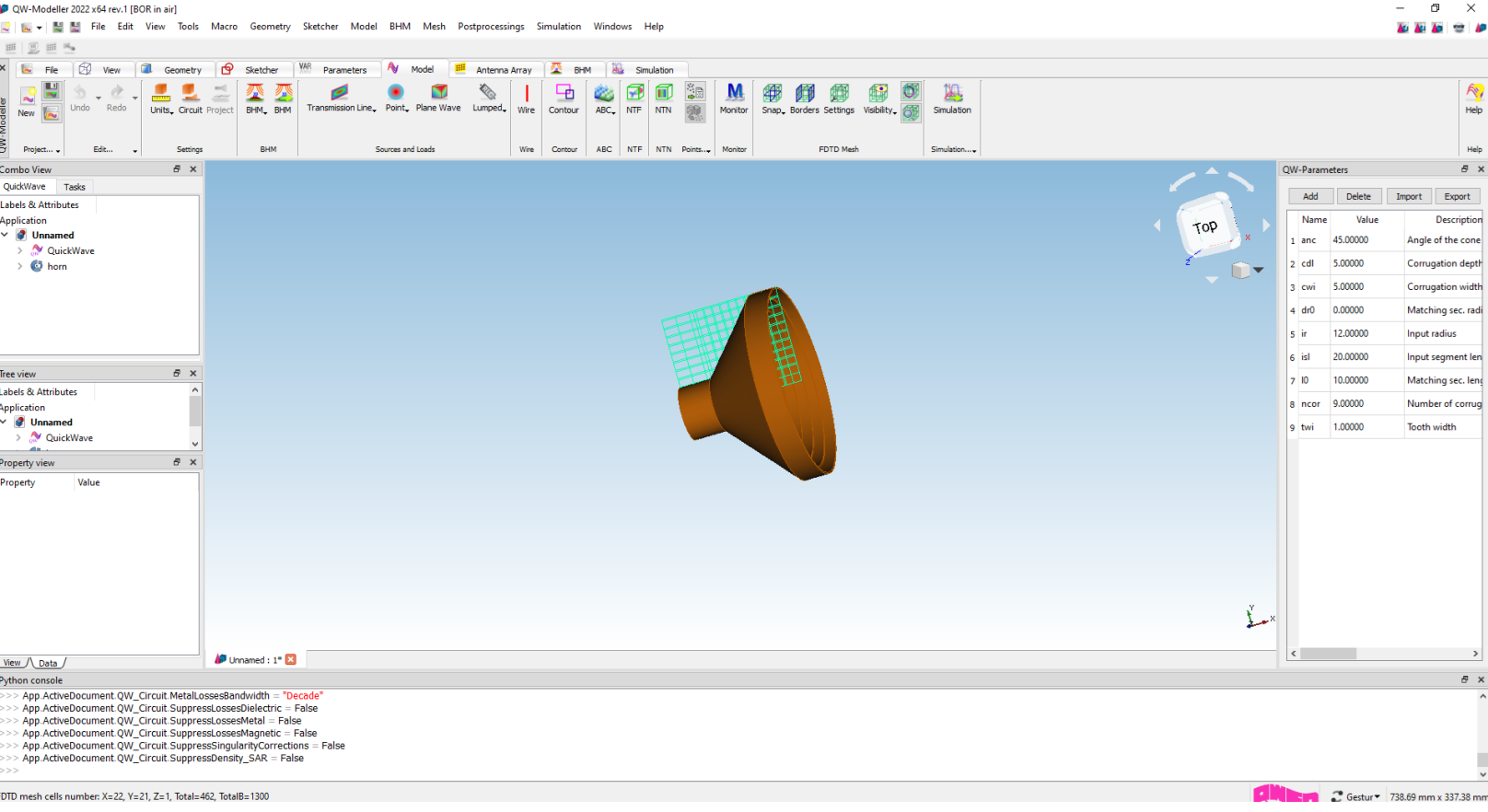

Figure 6: The corrugated horn obtained in V2D project.

It is also possible to execute this script in 3D project.

Figure 7: The corrugated horn obtained in 3D project. In such a case, the generated mesh will be three dimensional and it will consume significantly more memory.
