45   Symmetric Array Antenna

This example is available in .../QW-3D/Standard/Antennas/Patch/array_ant_sym.QWPro in the QW-Modeller examples directory and can be loaded using File®Open Examples... command from main menu.

General Description

A microstrip patch antenna array on PTFE substrate (ε = 2.2, loss tangent = 0.009 on 9.22 GHz).

Geometry

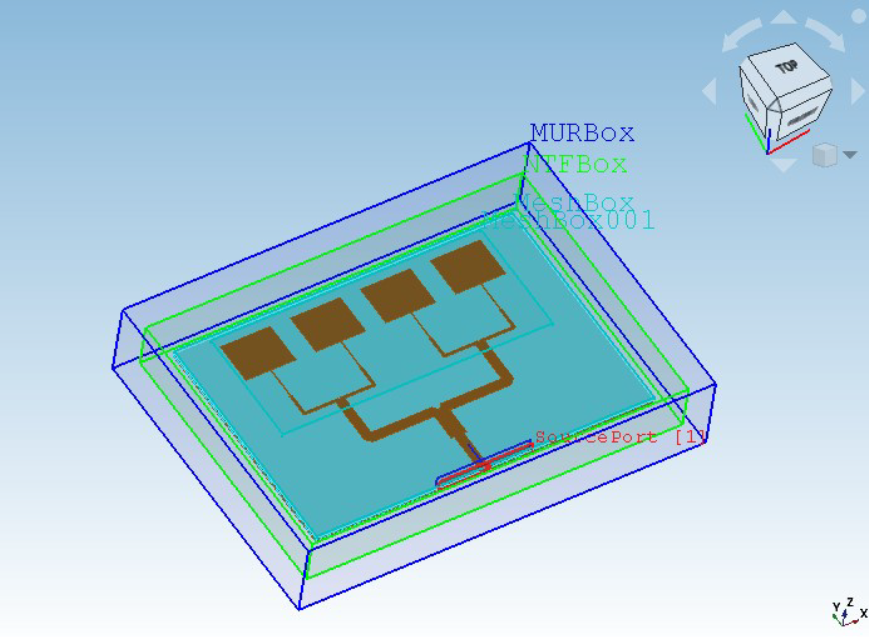

The antenna array consists of four rectangular patch elements arranged in a linear configuration, each intended to resonate at the designed operating frequency. These patch elements are evenly spaced to reduce mutual coupling and to ensure a uniform radiation pattern.

Post Processing

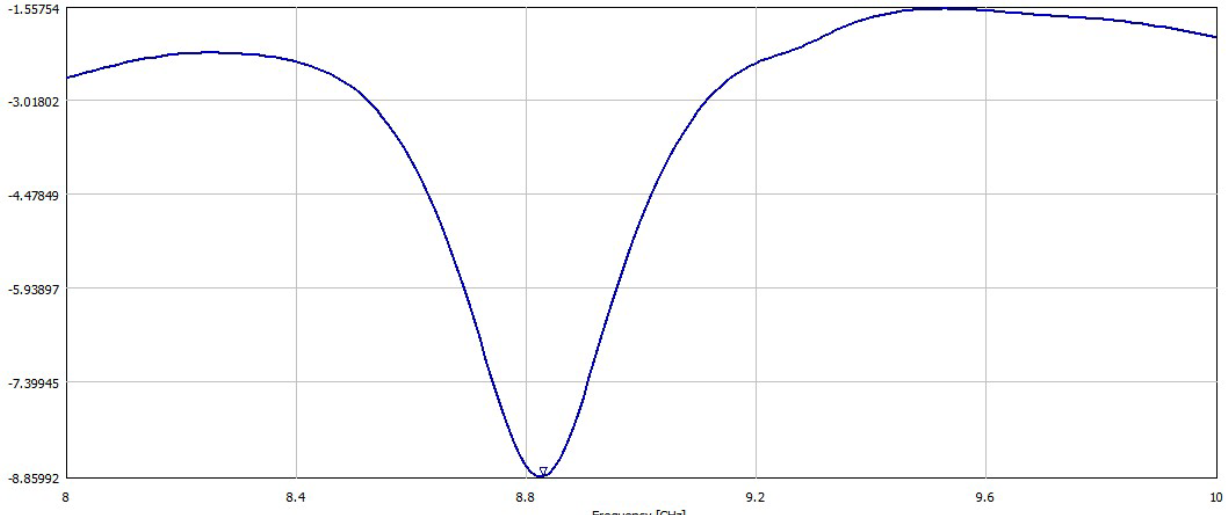

Reflection coefficient.

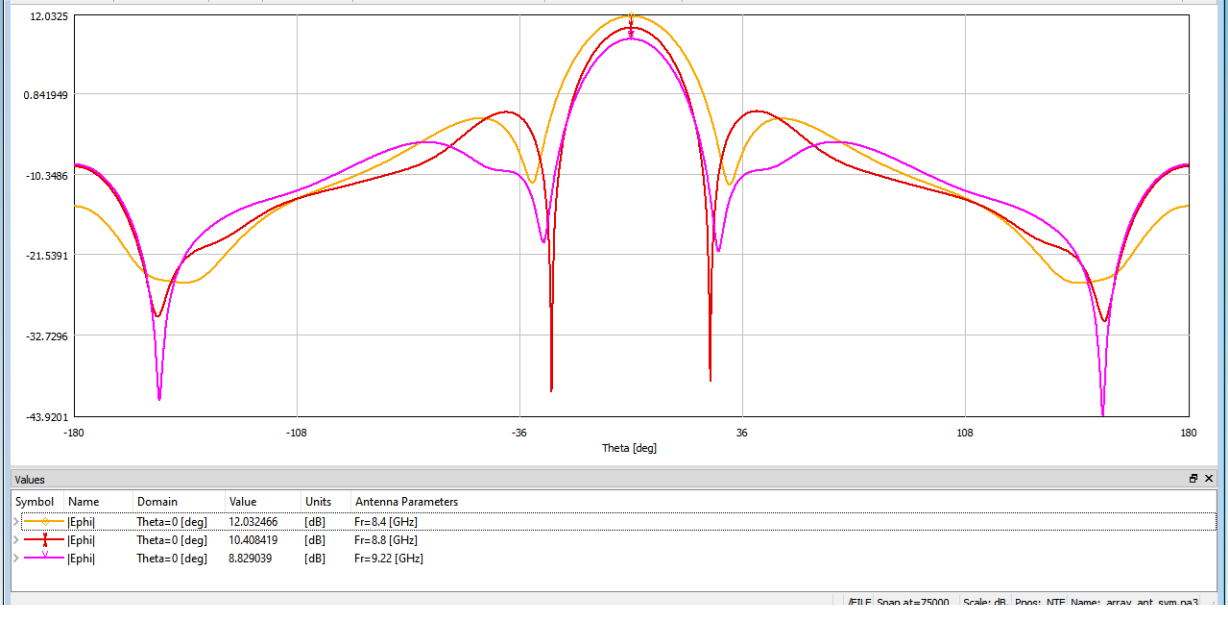

Radiation pattern results (linear scale) for 8.4, 8.8, 9.22 GHz.

Radiation pattern results (linear scale) on polar plane for 8.4, 8.8, 9.22 GHz.

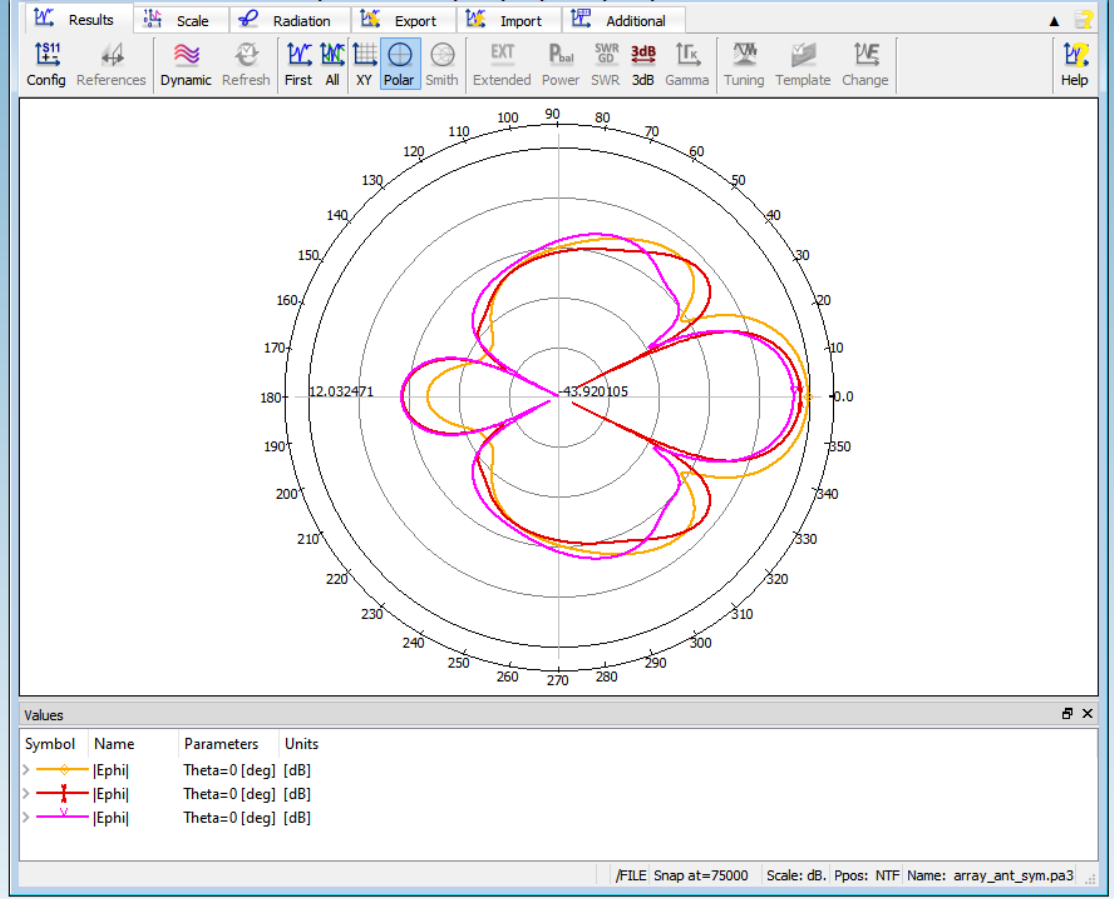

Radiation pattern results (decibel scale) on polar plane for 8.4, 8.8, 9.22 GHz.
