18.9 Defining post-processings for simulation

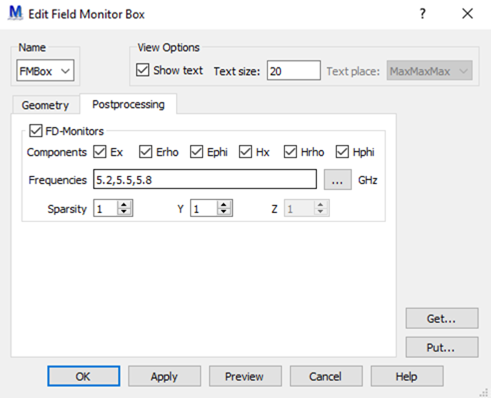

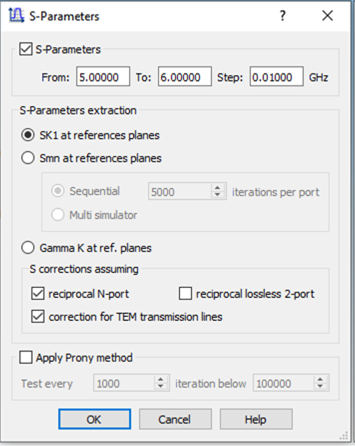

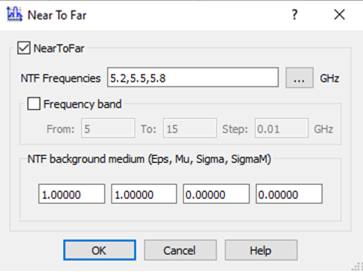

Now we can proceed to the last step, namely setting up the post-processings. For that purpose we switch to the Simulation tab. In this case we are interested in the S-parameters calculations, radiation patterns at chosen frequency (5.2, 5.5, 5.8 GHz) and dynamic monitoring of field distribution at chosen frequency (5.2, 5.5, 5.8 GHz). Thus we press S button, NTF button and then Field Monitor button and configure the post-processings as in the following pictures.
