18.7Creating Field Monitor Box

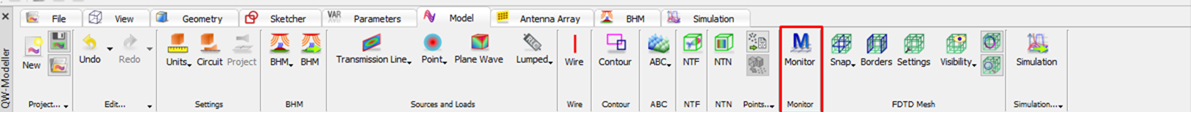

Field Monitor Box enables performing Fourier-transformation of the chosen field components, at specified frequencies (which will be set in Postprocessing step) in the circuit area limited by its dimensions. The Monitor button in the Model tab and Model−→Monitor. . . command from main menu invoke the Create Field Monitor

Box dialogue, which allows introducing Field Monitor Box into the project.

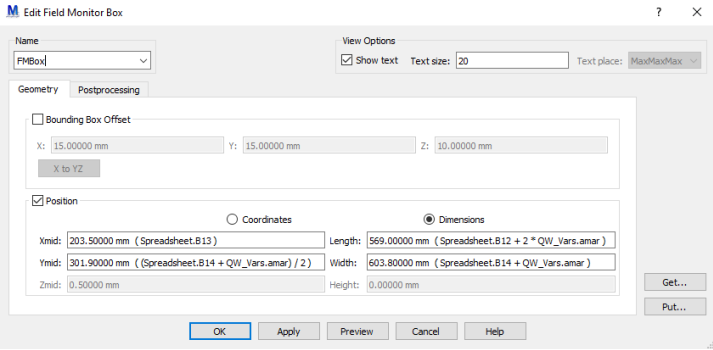

We set the Field Monitor Box dimensions by defining its length, width and middle coordinates. We put the values as in the picture below:
