18.3.4                    Revolving sketches into solids

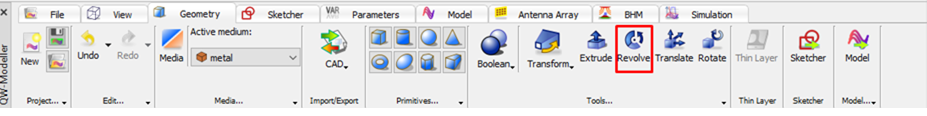

The final antenna is obtained after revolving the base antenna sketch. We go to Geometry tab and we choose Revolve.

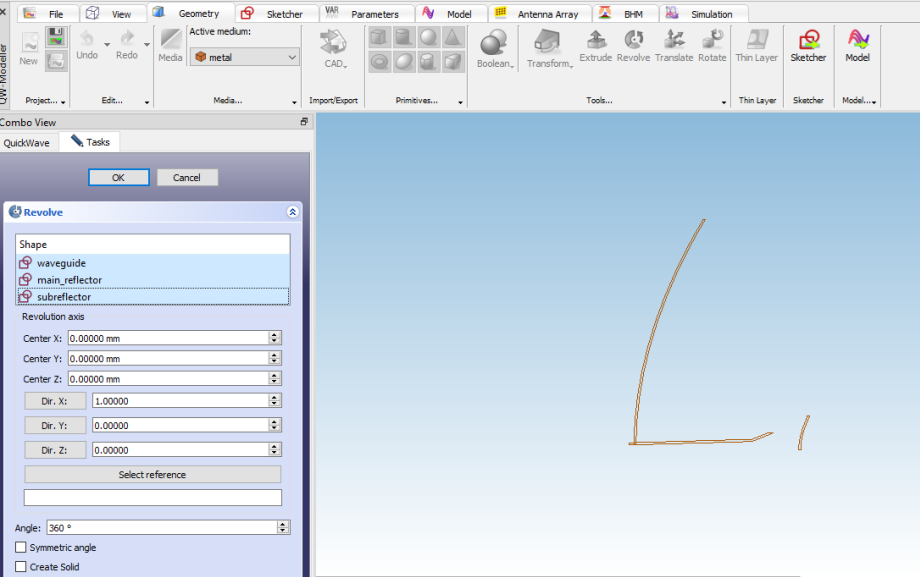

We select all sketches and revolve them around X axis.

Revolved objects are shown below:
