18.3.2                    Circular waveguide

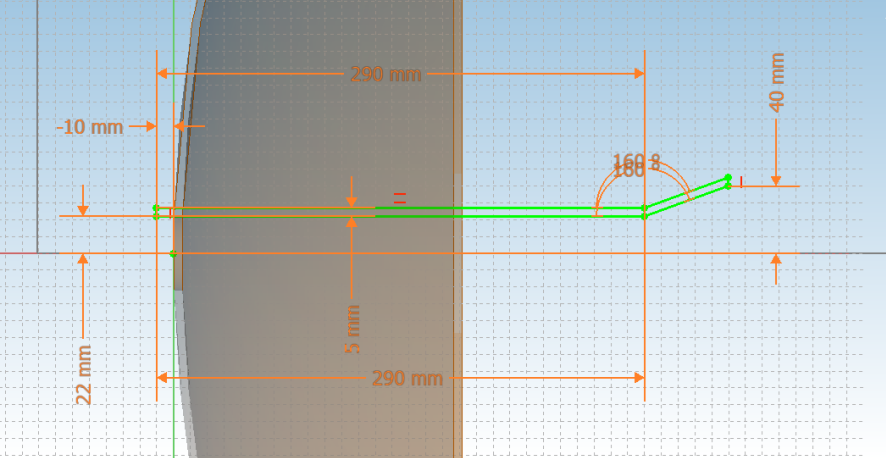

Having a new sketch created, we draw simple horn waveguide as in the picture below:

It is also possible to create this waveguide by executing macro instead of drawing it. The python script for this example is avaible in .../QW-Modeller/v2023x64/macros/Feeds directory - waveguide.py script can be loaded using Macro −→ Macros command from main menu.
