18.2.2                    Spreadsheet

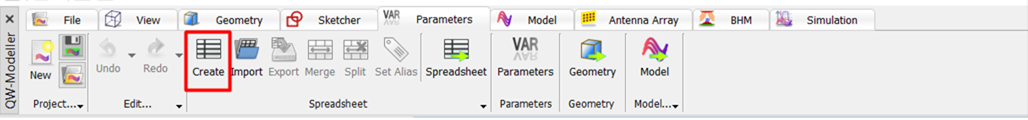

The Spreadsheet object allows defining additional variables which can be combinations of already defined user variables in QW-Parameters dock window. To create a new Spreadsheet, we go to Parameters tab and pick Create.

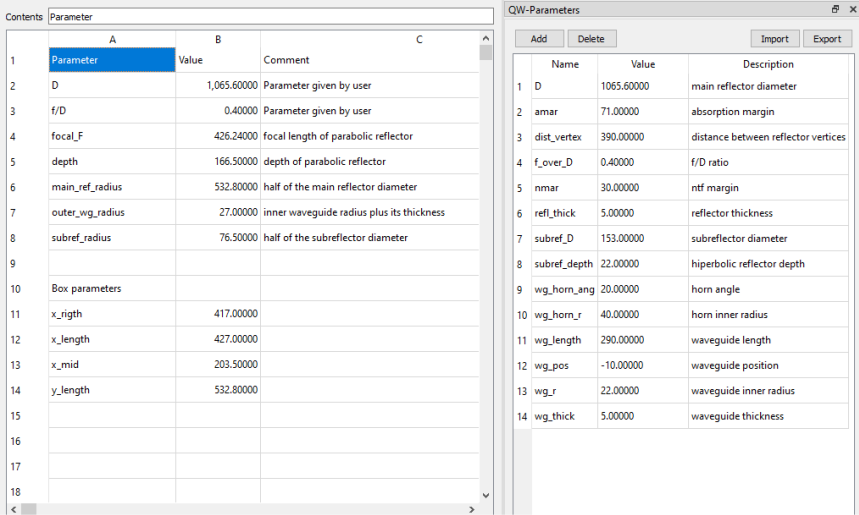

Final content of the Spreadsheet is shown below.

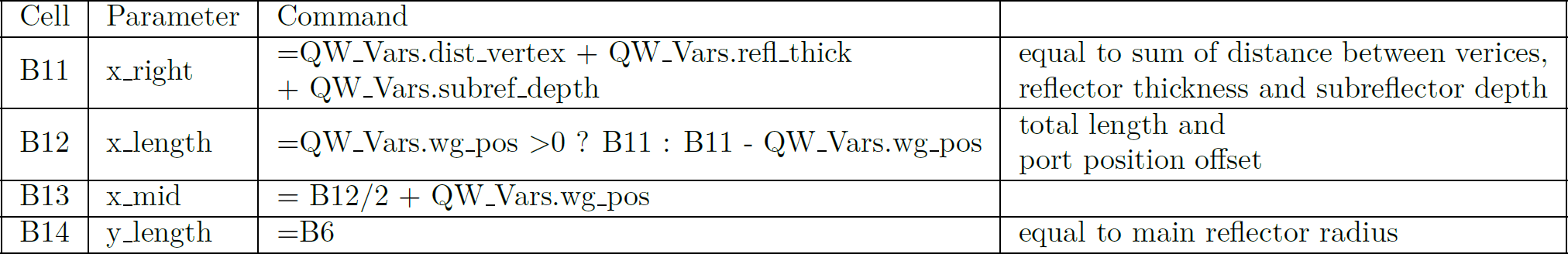

To obtain correct values, the B column should be completed as follows:

We will also calculate the overall dimensions of half of the long section of the model in the x and y directions - that step will allow us to parameterize NTFBox and MURBox later.
