18.2.1                    QW-Parameters

The QW-Parameters allow for defining user parameters. All user parameters will appear as properties of QWVars object. Those parameters are exported to QW-Simulator and can be then used in its operations e.g. optimisation and grid search.

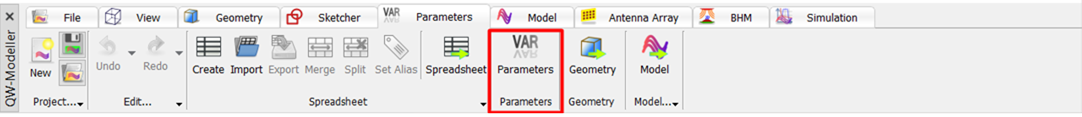

Access to QW-Parameters dock window is available in the Parameters tab, under the Parameters push button.

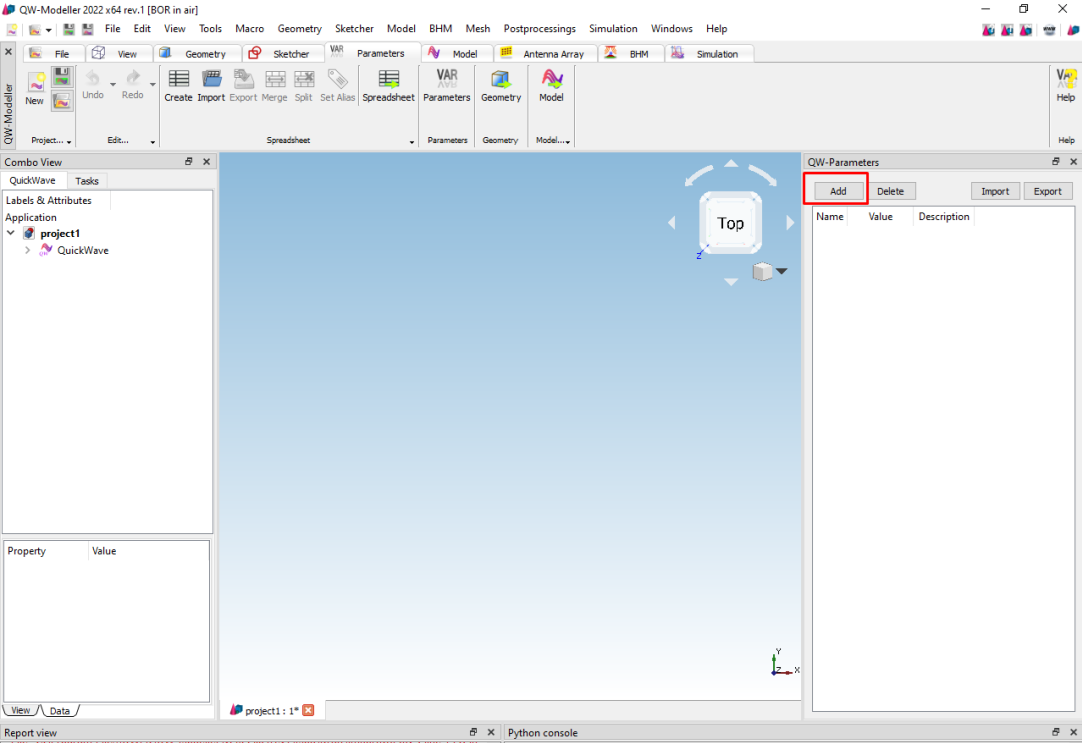

After QW-Parameters dock window appears, we pick Add Button to open User Parameter dialogue for creation of new User parameter - a combination of a floating point number and Unit.

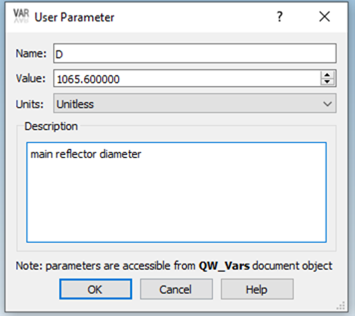

We specify Name, Value, Units, and Description of a new parameter. The Name has to be unique, also it is not editable after creation. Value and description of a parameter can be changed.

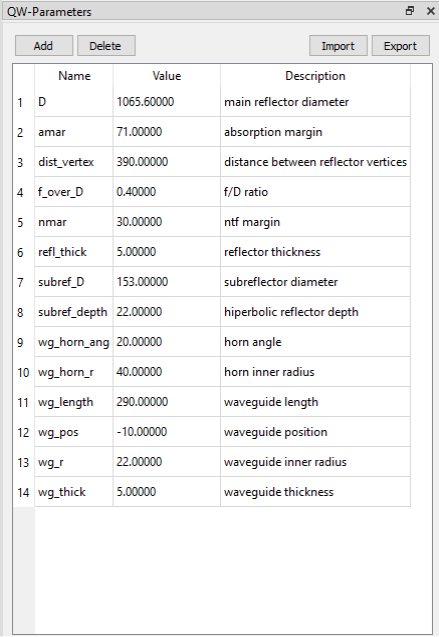

We should add the rest of the parameters as in the picture below:

We will assign them directly to some of the model dimensions later.
