16  Modified flat-subreflector antenna

This example is available in .../QW-V2D/Standard/Antennas/Reflant/flat_subref_param.QWPro in the QW-Modeller examples directory and can be loaded using File®Open Examples... command from main menu.

General Description

This example is derived from the following publication: M. Olszewska and W. Gwarek, ”A dual reflector antenna for point-to-point system applications”, 18-th INTERNATIONAL CONFERENCE ON MICROWAVES, RADAR AND WIRELESS COMMUNICATIONS, Vilnius, Lithuania, 2010, pp. 1-4.

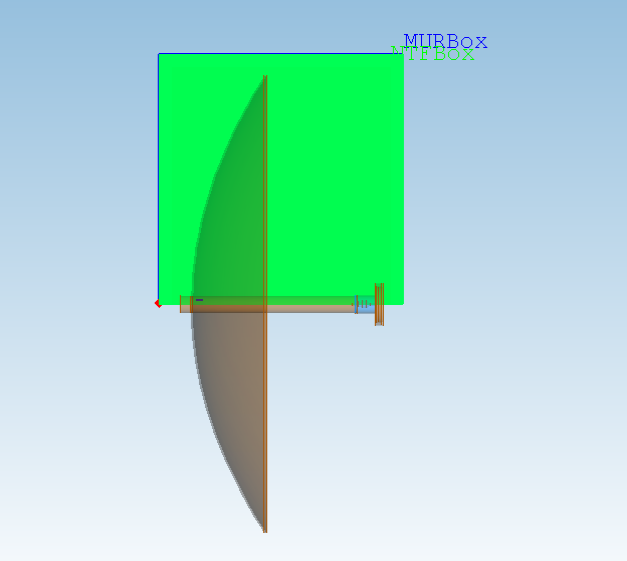

Geometry

This example considers hat – fed reflector antenna, having subreflector suspended on a dielectric tube. The flat subreflector, along with its dimensions, has been thoroughly described in Macro-based objects/Modified flat hat reflector chapter. Its design was optimized for high directivity and low sidelobes.

Postprocessing

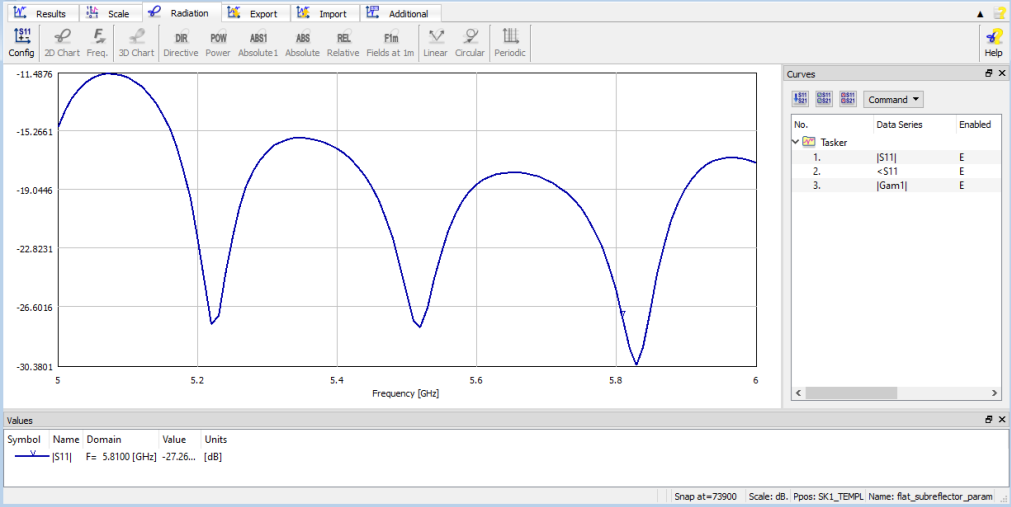

Reflection coefficient.

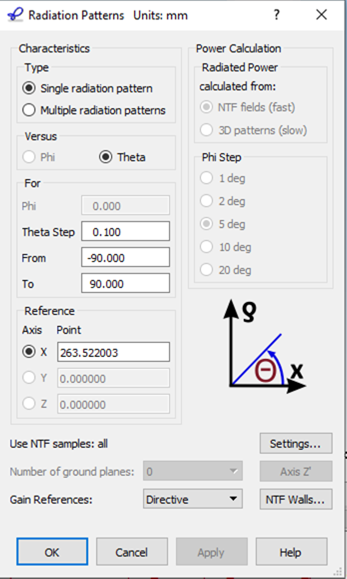

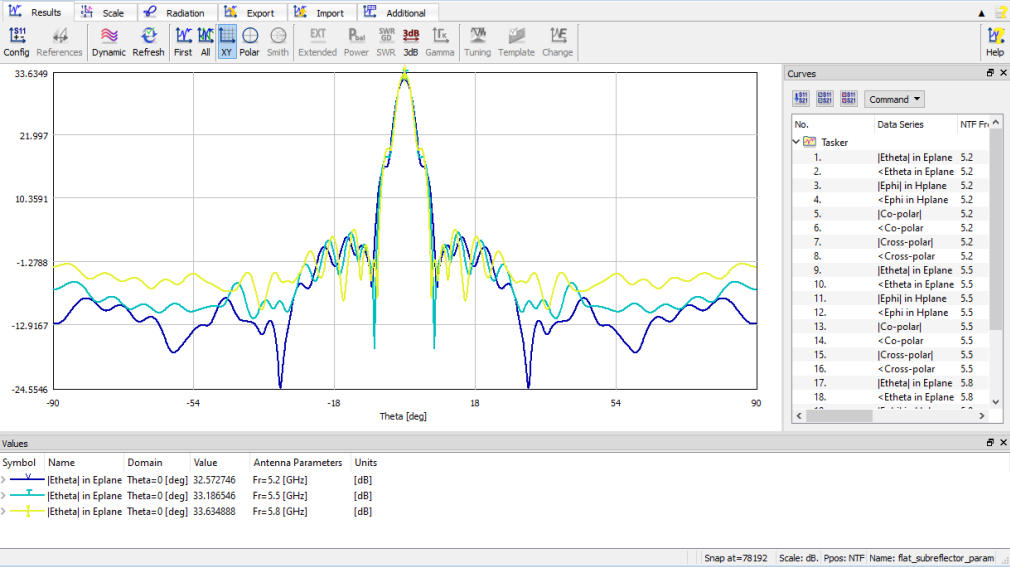

Radiation pattern results for 5.8 GHz.

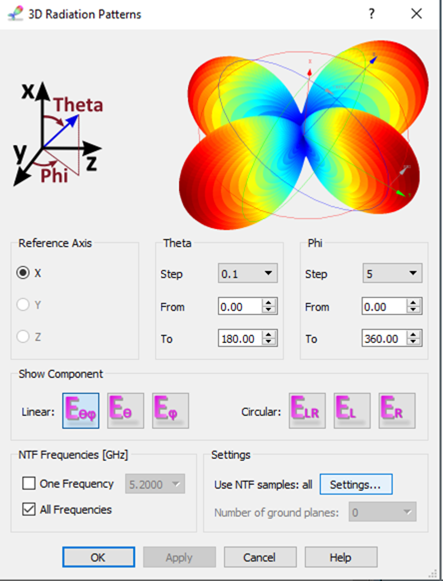

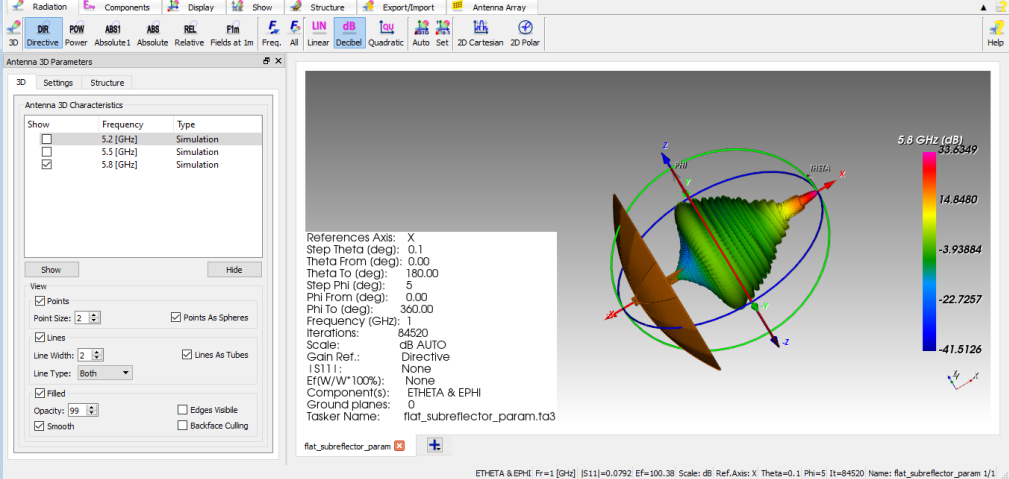

3D radiation pattern results for 5.8 GHz
