2.3 QW-Modeller Ribbon

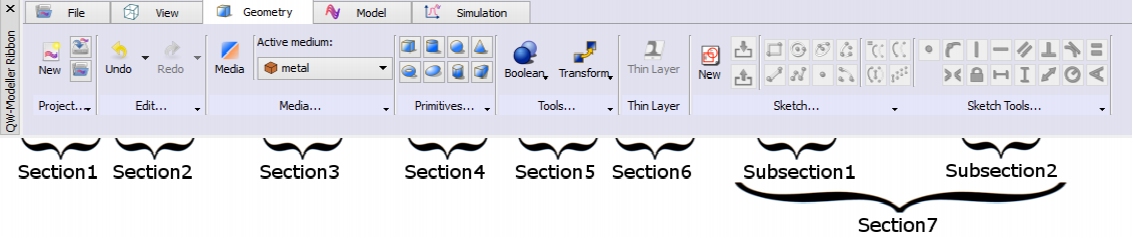

QW-Modeller Ribbon contains all commands needed for creating complete project for FDTD electromagnetic simulation with QuickWave software for electromagnetic simulations. They are organised in a series of tabs divided in sections and subsections with grouped commands and contain the following types of buttons and controls:

- small push button

- big push button

- big push button with commands

- combo box with choices

- label button with commands

QW-Modeller ribbon is organised in five tabs: File, View, Geometry, Model, and Simulation, which will be described in details further in this section.
