4.6.11 Pocket

This tool takes a selected sketch as its input, and produces with it a pocket. A pocket being essentially an extrusion of a sketch that subtracts from the geometry it protrudes into. This sketch must be mapped to the face of an existing solid or an error message will appear.

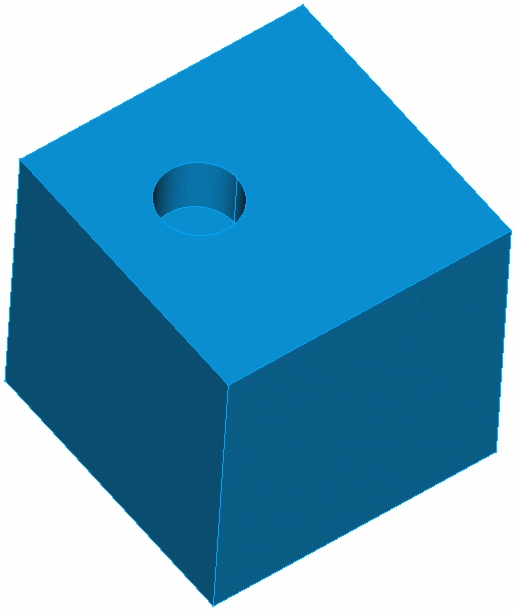

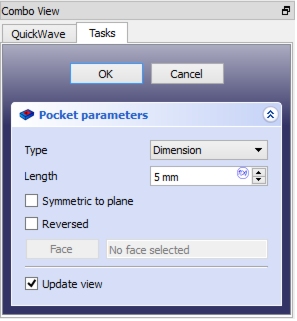

After selecting sketch in the Tree View and clicking under button placed in the QW-Modeller Ribbon's Geometry tab, an additional dialogue will appear in the Task Panel. This dialogue allows modifying various pocket parameters.
