4.7.3 Sketcher Geometries

Various geometries can be drawn using the following options:

- Point: Draws a point.

- Line by 2 point: Draws a line segment from 2 points.

- Polyline (multiple-point line): Draws a line made of multiple line segments. Pressing the M key while drawing a Polyline toggles between the different polyline modes.

- Rectangle: Draws a rectangle from 2 opposite points.

- Circle: Draws a circle from centre and radius.

- Arc: Draws an arc segment from center, radius, start angle and end angle.

- Ellipse by center: Draws an ellipse by center point, major radius point and minor radius point.

- Arc of ellipse: Draws an arc of ellipse by center point, major radius point, starting point and ending point.

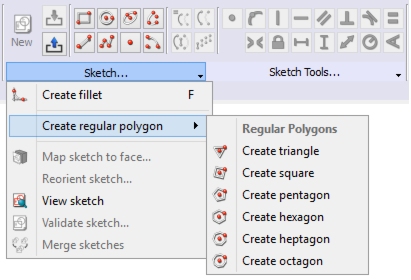

- Triangle: Draws a regular triangle inscribed in a construction geometry circle.

- Square: Draws a regular square inscribed in a construction geometry circle.

- Pentagon: Draws a regular pentagon inscribed in a construction geometry circle.

- Hexagon: Draws a regular hexagon inscribed in a construction geometry circle.

- Heptagon: Draws a regular heptagon inscribed in a construction geometry circle.

- Octagon: Draws a regular octagon inscribed in a construction geometry circle.

- Fillet: Makes a fillet between two lines joined at one point. Select both lines or click on the corner point, then activate the tool.
