1.4.3 Basic Heating Module (QW-BHM)

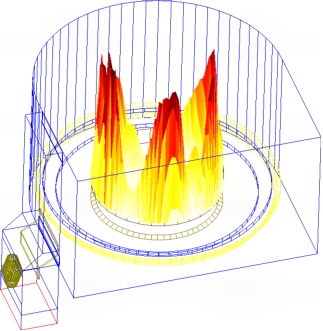

Basic Heating Module (QW-BHM) for QuickWave-3D provides a novel regime of operating the FDTD solver: the possibility of simulating microwave heating problems.

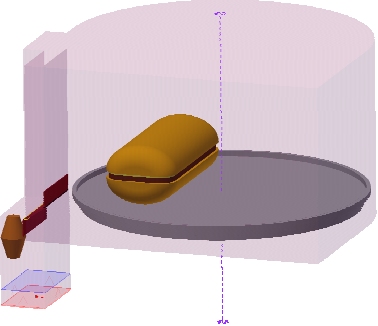

The software has been prepared to work in sophisticated regimes, modelling rotation and movement of the heated load(s) even along complicated trajectories, etc. Transfer of the heat generated by electromagnetic fields can be modelled with external or internal Heat Transfer Module. QW-BHM automatically modifies media parameters in thousands of FDTD cells filled with different media and heated up differently - all accomplished in a matter of seconds.
