22 Metamaterial prism illuminated with Gaussian beam

This example is available in .../QW-3D/Standard/Materials/MetamaterialPrism/prism.QWPro in the QW-Modeller examples directory and can be loaded using File®Open Examples... command from main menu.

General Description

Illumination of a metamaterial prism with Gaussian beam.

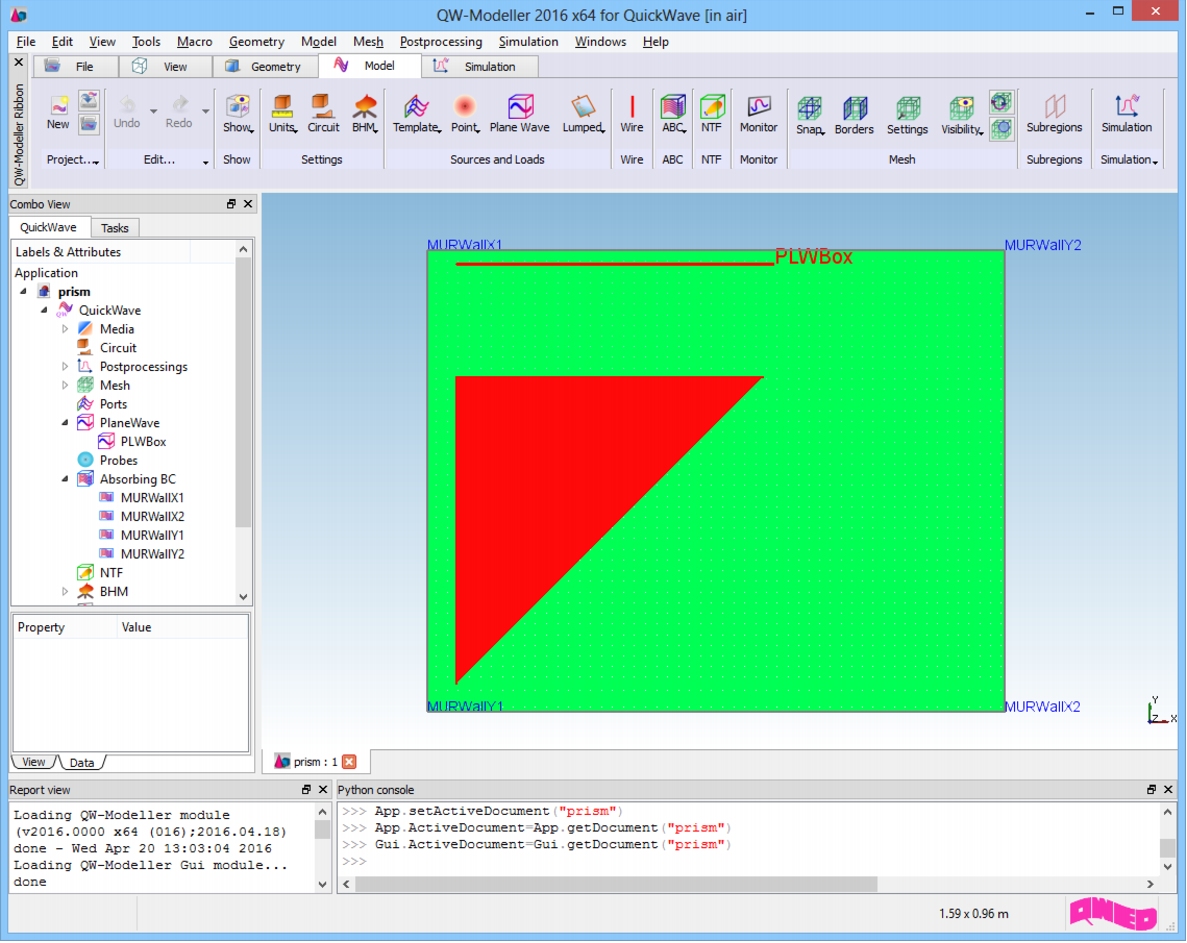

Geometry

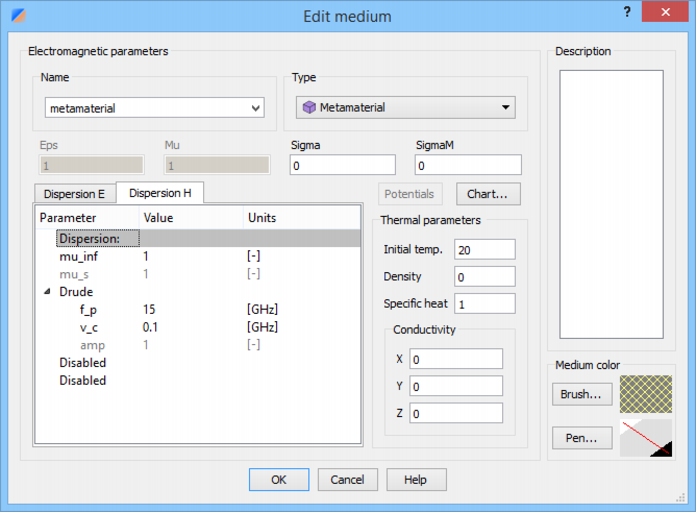

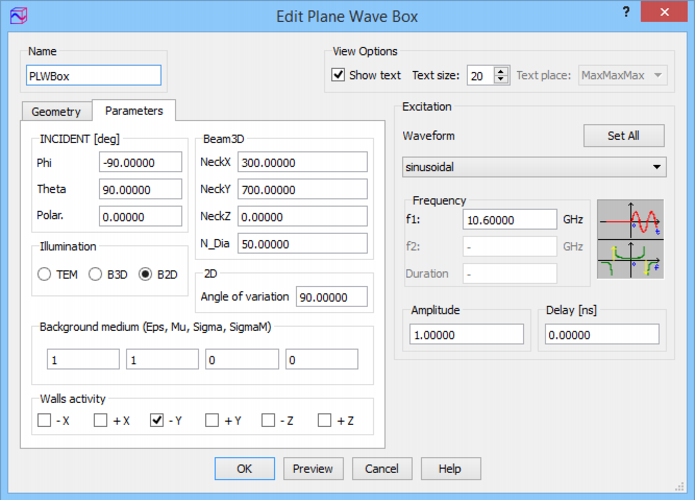

The triangular prism width and height are 530 mm and it is made of metamaterial with Drude dispersive model (parameters shown below) applied for both, electric and magnetic material properties. The prism is illuminated with 2D Gaussian beam with parameters as shown below.

Field Distribution

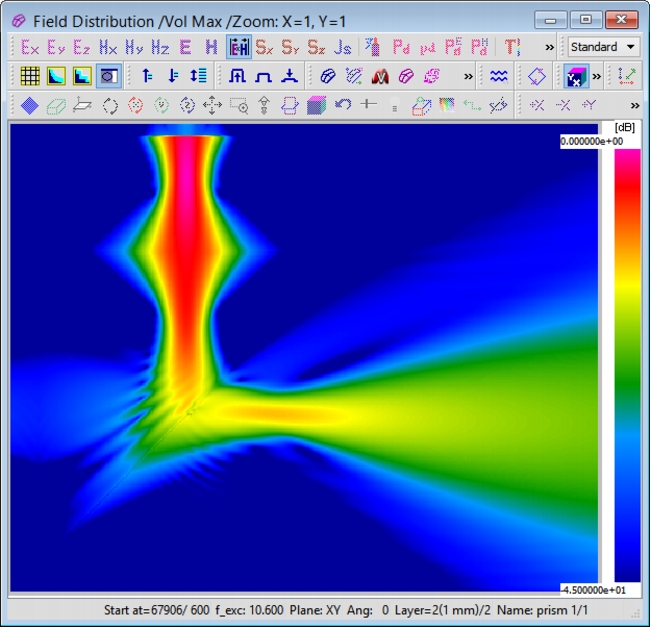

Envelope in decibel scale of the Poynting vector for the metamaterial prism illuminated with Gaussian beam.
