9 Use of the QW-BHM with two loads rotation


This example is available in .../QW-3D/BHM/Rotation/heat_rota2_z.QWPro in the QW-Modeller examples directory and can be loaded using File®Open Examples... command from main menu.

General Description

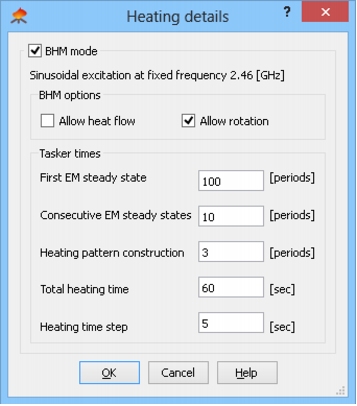

Microwave domestic oven with vertical feed, rectangular shelf, and rectangular food presenting the BHM regime with two loads rotation.

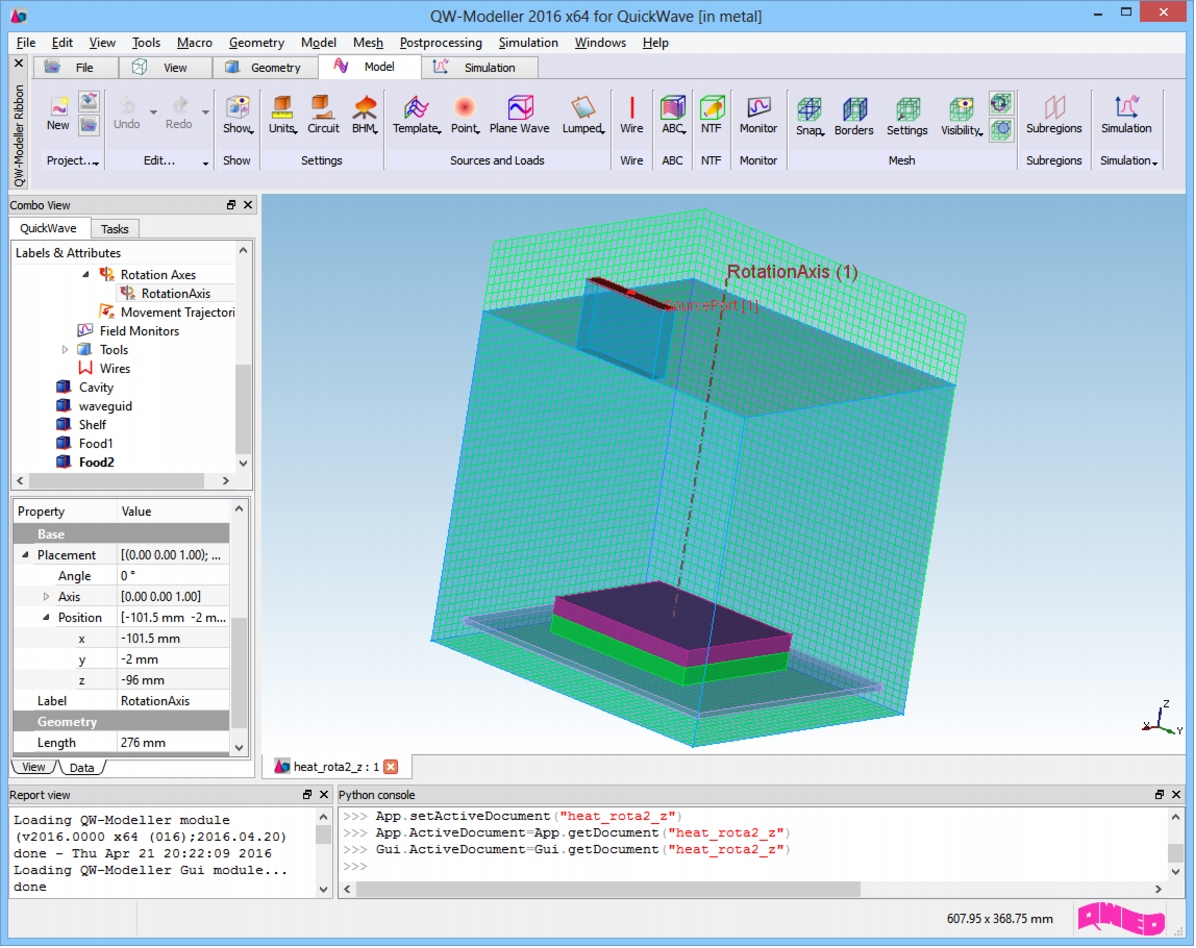

Geometry

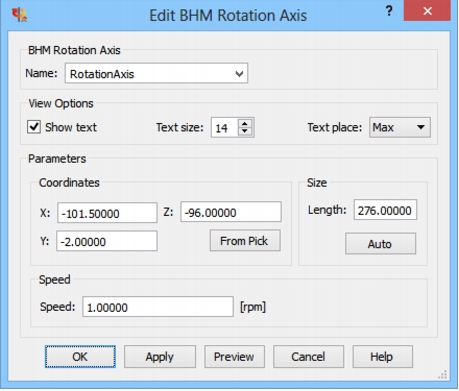

The oven's inside dimensions are 205 mm, 238 mm, and 228 mm in X, Y, Z directions respectively. Its vertical feeding waveguide dimensions are 12 mm, 70 mm, and 48 mm in X, Y, Z directions respectively. The rectangular shelf dimensions are 178 mm, 214 mm, and 4 mm in X, Y, Z directions respectively. Both foods dimensions are 50 mm, 60 mm, and 12 mm in X, Y, Z directions respectively and one lays on another. The rotation axis is located at X=-101.5mm and Y=-2mm coordinates.

Temperature Distribution

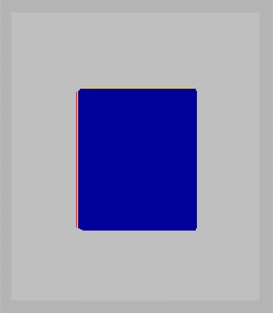

Initial temperature pattern across the load (in -5÷0°C scale) before BHM steps.

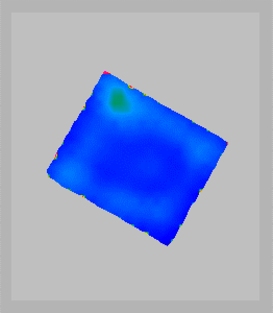

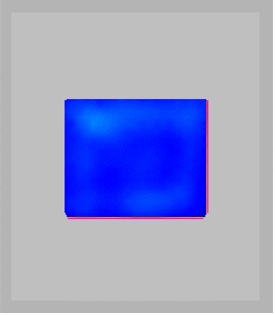

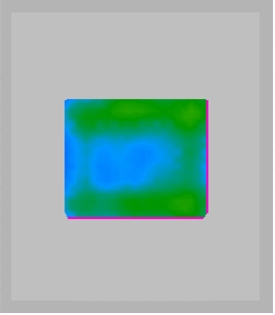

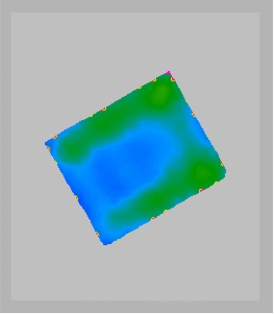

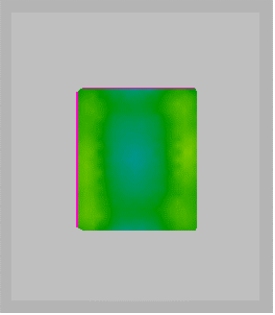

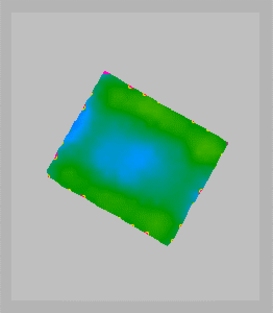

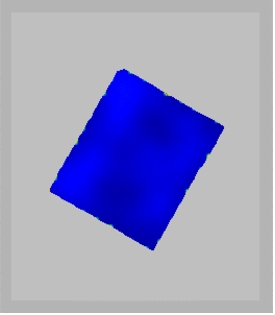

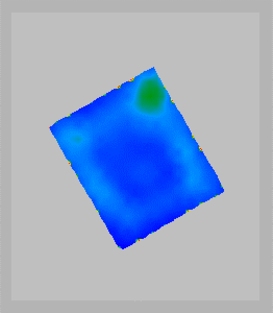

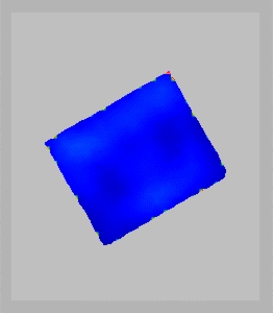

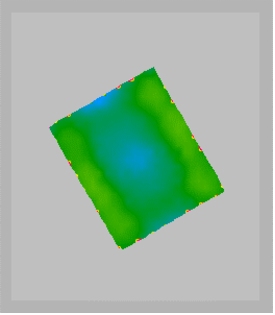

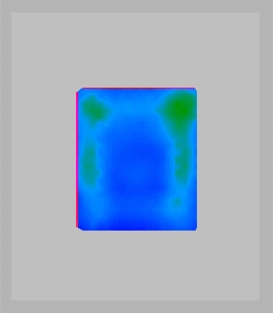

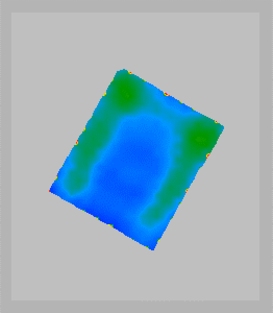

Temperature pattern across the load (in -5÷0°C scale) in consecutive 12 BHM steps.

BHM iter.
Min temp
oC
Max temp
oC
1
-4.99
-4.22
2
-4.91
-3.57
3
-4.81
-2.93
4
-4.75
-2.44
5
-4.72
-2.43
6
-4.45
-2.43
7
-4.23
-2.28
8
-4.00
-2.26
9
-3.85
-2.23
10
-3.71
-2.10
11
-3.60
-2.02
12
-3.45
-1.98

Temperature evolution in heat_rota2_z.QWpro.
